Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: UpdateInspectDelivery
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:UpdateInspectDeliveryType
Containing Schema: UpdateInspectDelivery.xsd
Abstract
Documentation:
The purpose of the UpdateInspectDelivery is to supply InspectDelivery information for goods or services to another business application module. This BOD may is initiated by the sending system upon some event occurring. There are many possible business applications in several environments that may use this capability. For example; 1. A PurchaseOrder application could use this to send information to a Plant Data Collection application, or vice versa. 2. An MRP, Inventory, Purchasing or Manufacturing business application could use this to communicate InspectDelivery information. 3. A Laboratory Information System could send quality information to an Inventory application, 4. A Quality Control application could send information to an MRP, Inventory, or Purchasing application.

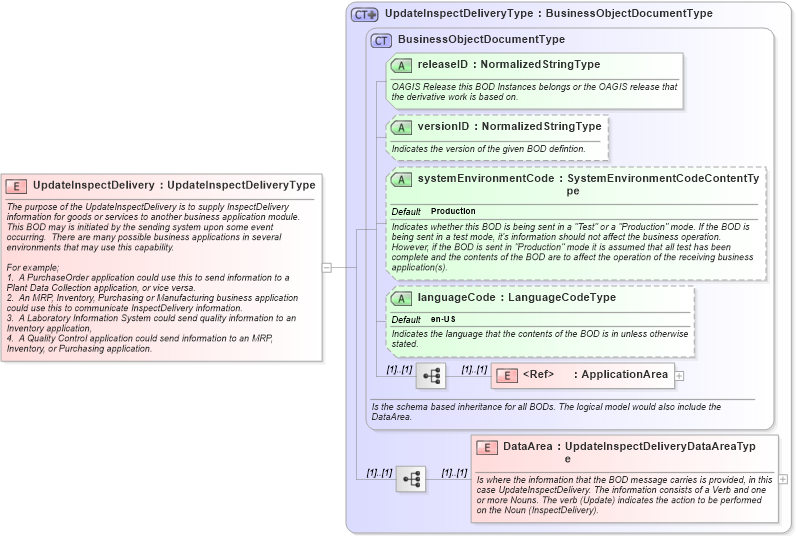

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema updateinspectdelivery_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into UpdateInspectDeliveryType in schema updateinspectdelivery_xsdXSD Diagram of UpdateInspectDelivery in schema updateinspectdelivery_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="UpdateInspectDelivery" type="UpdateInspectDeliveryType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the UpdateInspectDelivery is to supply InspectDelivery information for goods or services to another business application module.  This BOD may is initiated by the sending system upon some event occurring.  There are many possible business applications in several environments that may use this capability.

For example;
1.  A PurchaseOrder application could use this to send information to a Plant Data Collection application, or vice versa.
2.  An MRP, Inventory, Purchasing or Manufacturing business application could use this to communicate InspectDelivery information.
3.  A Laboratory Information System could send quality information to an Inventory application,
4.  A Quality Control application could send information to an MRP, Inventory, or Purchasing application.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
