Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ListReceiveDelivery
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ListReceiveDeliveryType
Containing Schema: ListReceiveDelivery.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the ListReceiveDelivery BOD is being depricated as of OAGIS 9.0, the ListReceiveDelivery will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the ShowReceiveDelivery BOD which may serve the same function of the ListReceiveDelivery BOD. The ListReceiveDelivery document may be used to obtain limited information listing about a expected (unreceived) or previously received goods deliveries that match certain selection criteria in a GetListReceiveDelivery request. Additional information about a specific ReceiveDelivery may be obtained through ShowReceiveDelivery by using the listing information to populate a GetReceiveDelivery request.

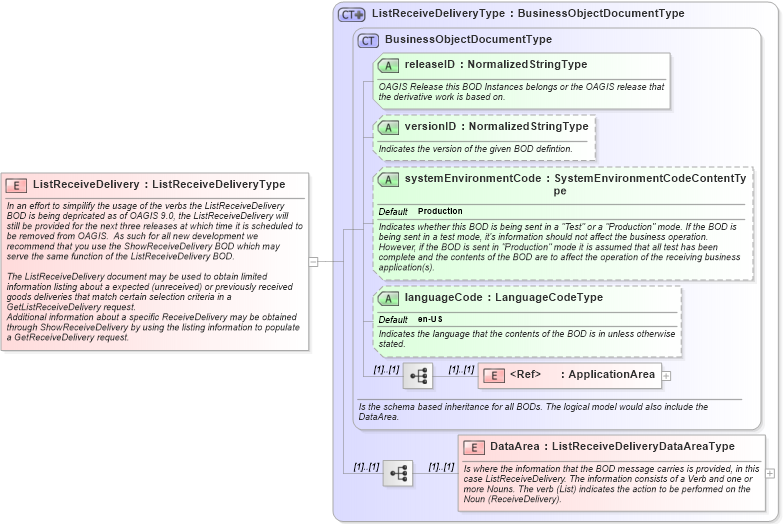

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema listreceivedelivery_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ListReceiveDeliveryType in schema listreceivedelivery_xsdXSD Diagram of ListReceiveDelivery in schema listreceivedelivery_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ListReceiveDelivery" type="ListReceiveDeliveryType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the ListReceiveDelivery BOD is being depricated as of OAGIS 9.0, the ListReceiveDelivery will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the ShowReceiveDelivery BOD which may serve the same function of the ListReceiveDelivery BOD.

The ListReceiveDelivery document may be used to obtain limited information listing about a expected (unreceived) or previously received goods deliveries that match certain selection criteria in a GetListReceiveDelivery request.
Additional information about a specific ReceiveDelivery may be obtained through ShowReceiveDelivery by using the listing information to populate a GetReceiveDelivery request.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
