Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: CreateMaintenanceOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:CreateMaintenanceOrderType
Containing Schema: CreateMaintenanceOrder.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the CreateMaintenanceOrder BOD is being depricated as of OAGIS 9.0, the CreateMaintenanceOrder will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the ProcessMaintenanceOrder BOD which may serve the same function of the CreateMaintenanceOrder BOD. The purpose of the CreateMaintenanceOrder is to publish to a business application component or system the need to create or update a Maintenance Order. One possible scenario is the synchronization of Maintenance Order between field devices, service trucks, etc. with a CMMS system.

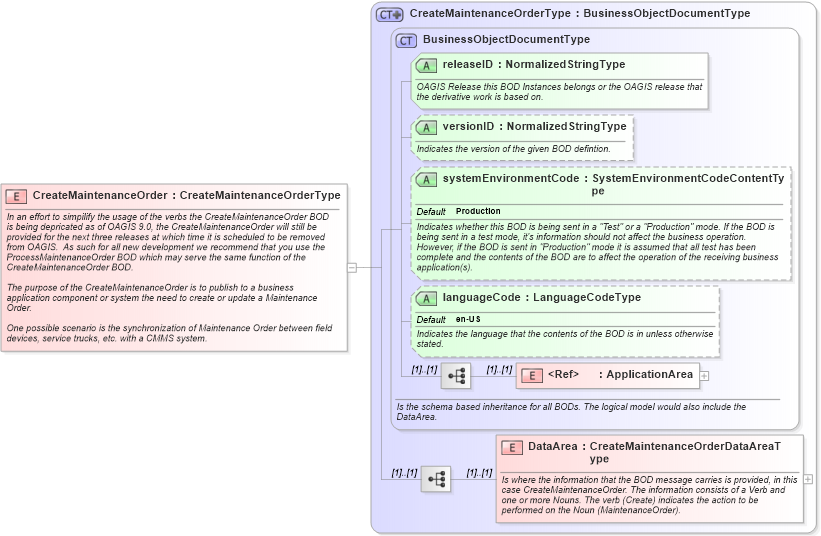

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema createmaintenanceorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into CreateMaintenanceOrderType in schema createmaintenanceorder_xsdXSD Diagram of CreateMaintenanceOrder in schema createmaintenanceorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="CreateMaintenanceOrder" type="CreateMaintenanceOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the CreateMaintenanceOrder BOD is being depricated as of OAGIS 9.0, the CreateMaintenanceOrder will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the ProcessMaintenanceOrder BOD which may serve the same function of the CreateMaintenanceOrder BOD.

The purpose of the CreateMaintenanceOrder is to publish to a business application component or system the need to create or update a Maintenance Order.

One possible scenario is the synchronization of Maintenance Order between field devices, service trucks, etc. with a CMMS system.
</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
