Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ProcessOperation
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProcessOperationType
Containing Schema: ProcessOperation.xsd
Abstract
Documentation:
The purpose of the ProcessOperation is to enable an application to provide online shopping Operations from another business application module. The ProcessOperation is provided in a a publishe/subscribe or broadcast buiness exchange where an application other than the owner or the master of the given information provides it to the business applications that owns the data in order to have it process or perform a function with the information.

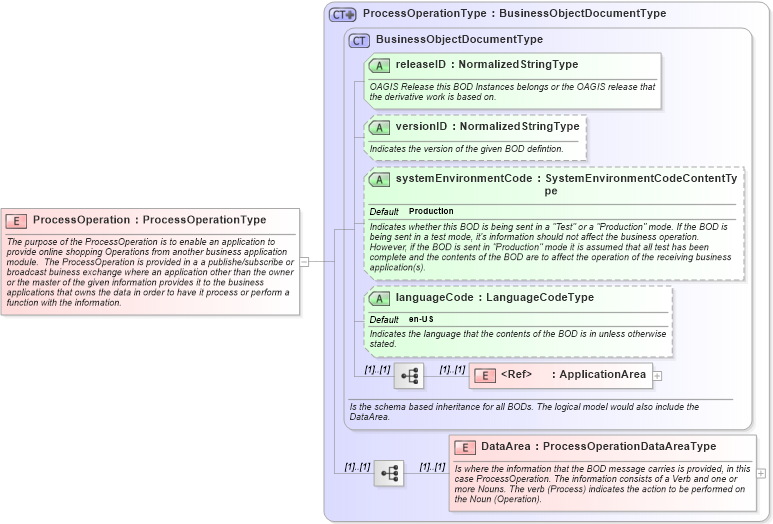

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema processoperation_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ProcessOperationType in schema processoperation_xsdXSD Diagram of ProcessOperation in schema processoperation_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ProcessOperation" type="ProcessOperationType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ProcessOperation is to enable an application to provide online shopping Operations from another business application module.  The ProcessOperation is provided in a a publishe/subscribe or broadcast buiness exchange where an application other than the owner or the master of the given information provides it to the business applications that owns the data in order to have it process or perform a function with the information.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
