Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ChangeEngineeringWorkDocument
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ChangeEngineeringWorkDocumentType
Containing Schema: ChangeEngineeringWorkDocument.xsd
Abstract
Documentation:
The purpose of the ChangeEngineeringWorkDocument is to enable an application to provide EngineeringWorkDocument from another business application module. The ChangeEngineeringWorkDocument is provided in response to the ProcessCart in order to request a change to process the cart. The Chagne is directed from the owner of the information (the receiver of the Process) the originator of the Process.

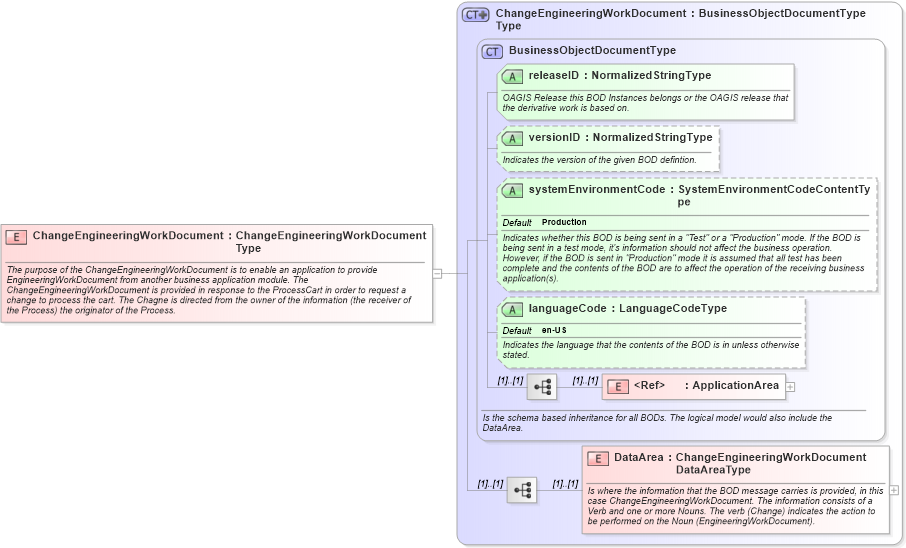

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema changeengineeringworkdocument_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ChangeEngineeringWorkDocumentType in schema changeengineeringworkdocument_xsdXSD Diagram of ChangeEngineeringWorkDocument in schema changeengineeringworkdocument_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ChangeEngineeringWorkDocument" type="ChangeEngineeringWorkDocumentType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ChangeEngineeringWorkDocument is to enable an application to provide EngineeringWorkDocument from another business application module. The ChangeEngineeringWorkDocument is provided in response to the ProcessCart in order to request a change to process the cart. The Chagne is directed from the owner of the information (the receiver of the Process) the originator of the Process.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
