Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ProcessCreditTransfer
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProcessCreditTransferType
Containing Schema: ProcessCreditTransfer.xsd
Abstract
Documentation:
The purpose of the ProcessCreditTransfer is to enable an application to request specific CreditTransfer information from another business application module. The response to the ProcessCreditTransfer is the ProcessCreditTransfer.

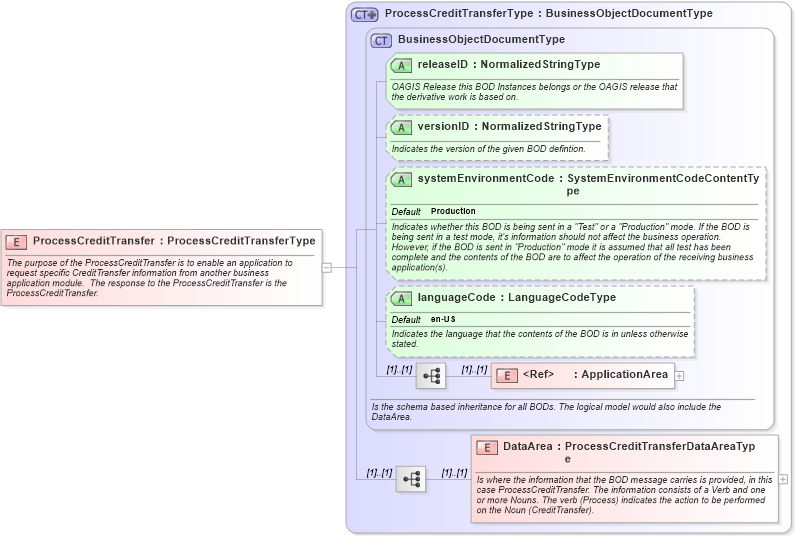

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema processcredittransfer_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ProcessCreditTransferType in schema processcredittransfer_xsdXSD Diagram of ProcessCreditTransfer in schema processcredittransfer_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ProcessCreditTransfer" type="ProcessCreditTransferType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ProcessCreditTransfer is to enable an application to request specific CreditTransfer information from another business application module.  The response to the ProcessCreditTransfer is the ProcessCreditTransfer.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
