Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: LoadProjectAccounting
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:LoadProjectAccountingType
Containing Schema: LoadProjectAccounting.xsd
Abstract
Documentation:
The purpose of the LoadProjectAccounting is to enable all relevant sub-systems that submit single sided transactions to send information to a Project Accounting Application. This would include, but not necessarily be limited to: · Accounts Payable · Accounts Receivable · Budget · Order Management · Purchasing · Time and Labor · Travel and Expense The LoadProjectAccounting will cause common data to be loaded in a project accounting application.

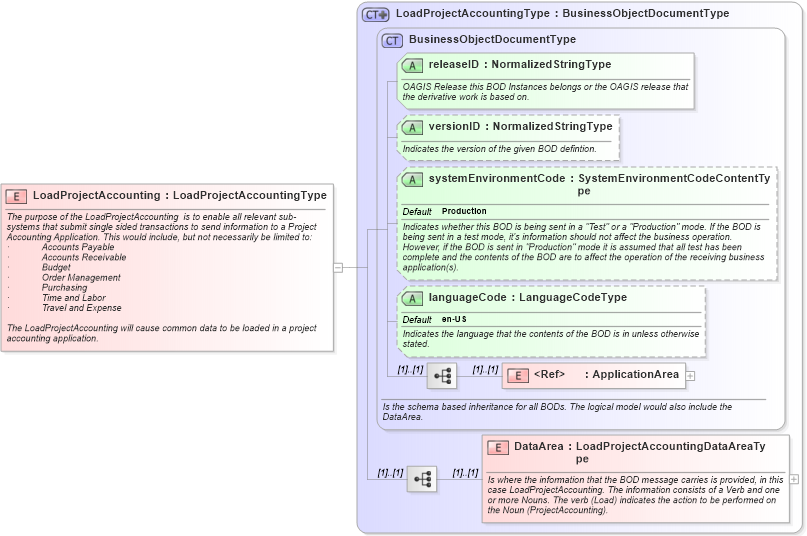

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema loadprojectaccounting_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into LoadProjectAccountingType in schema loadprojectaccounting_xsdXSD Diagram of LoadProjectAccounting in schema loadprojectaccounting_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="LoadProjectAccounting" type="LoadProjectAccountingType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the LoadProjectAccounting  is to enable all relevant sub-systems that submit single sided transactions to send information to a Project Accounting Application. This would include, but not necessarily be limited to:
·	Accounts Payable
·	Accounts Receivable
·	Budget
·	Order Management
·	Purchasing
·	Time and Labor
·	Travel and Expense

The LoadProjectAccounting will cause common data to be loaded in a project accounting application.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
