Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: SyncItemMaster
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SyncItemMasterType
Containing Schema: SyncItemMaster.xsd
Abstract
Documentation:
The purpose of the SyncItemMaster is to supply Item information for goods or services to another business application module. This BOD may also be initiated by the sending system upon some event occurring. This BOD is not for synchronizing ITEM quantities at each inventory location. The SyncInventoryBalance Business Object Document is used for this purpose. There are many possible business applications in several environments that may use this capability. For example, a MRP, Inventory, or Manufacturing business application could use this to communicate item information. This BOD can be used to synchronize items used in finished goods, raw materials, work-in-process or components in a bill of materials.

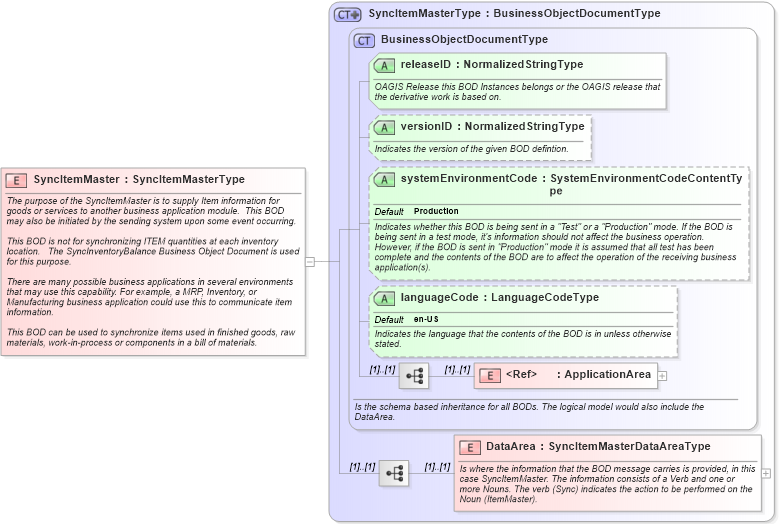

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema syncitemmaster_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into SyncItemMasterType in schema syncitemmaster_xsdXSD Diagram of SyncItemMaster in schema syncitemmaster_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="SyncItemMaster" type="SyncItemMasterType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the SyncItemMaster is to supply Item information for goods or services to another business application module.  This BOD may also be initiated by the sending system upon some event occurring.

This BOD is not for synchronizing ITEM quantities at each inventory location.   The SyncInventoryBalance Business Object Document is used for this purpose.

There are many possible business applications in several environments that may use this capability. For example, a MRP, Inventory, or Manufacturing business application could use this to communicate item information.

This BOD can be used to synchronize items used in finished goods, raw materials, work-in-process or components in a bill of materials.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
