Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ProcessSalesLead
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProcessSalesLeadType
Containing Schema: ProcessSalesLead.xsd
Abstract
Documentation:
The purpose of the ProcessSalesLead is to enable an application to provide SalesLead information from one business application to another business application. The ProcessSalesLead is provided in a a publishe/subscribe or broadcast buiness exchange where an application other than the owner or the master of the given information provides it to the business applications that owns the data in order to have it process or perform a function with the information.
Collapse XSD Schema Diagram:

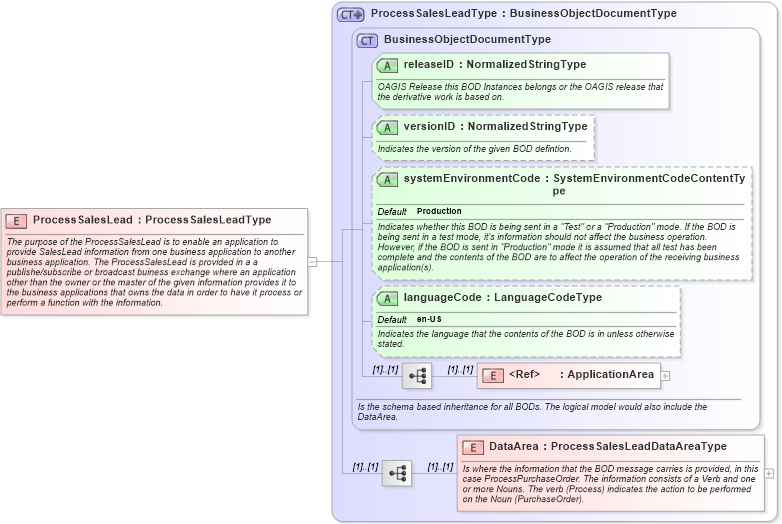

Drilldown into DataArea in schema processsaleslead_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ProcessSalesLeadType in schema processsaleslead_xsdXSD Diagram of ProcessSalesLead in schema processsaleslead_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ProcessSalesLead" type="ProcessSalesLeadType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ProcessSalesLead is to enable an application to provide SalesLead information from one business application to another business application. The ProcessSalesLead is provided in a a publishe/subscribe or broadcast buiness exchange where an application other than the owner or the master of the given information provides it to the business applications that owns the data in order to have it process or perform a function with the information.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
