Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: SyncAllocateResource
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SyncAllocateResourceType
Containing Schema: SyncAllocateResource.xsd
Abstract
Documentation:
The purpose of the SyncAllocateResource is to supply AllocateResource information to another business application module. Where the allocation of resources is provided by the system of record.

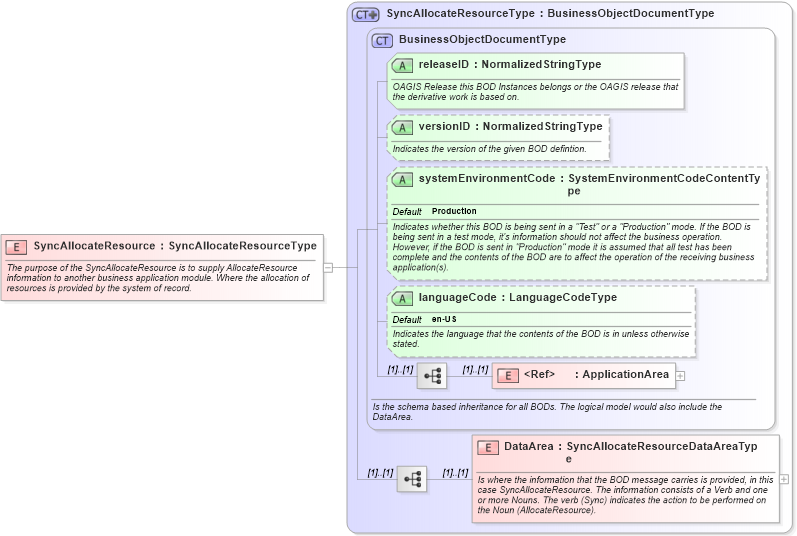

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema syncallocateresource_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into SyncAllocateResourceType in schema syncallocateresource_xsdXSD Diagram of SyncAllocateResource in schema syncallocateresource_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="SyncAllocateResource" type="SyncAllocateResourceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the SyncAllocateResource is to supply AllocateResource information to another business application module. Where the allocation of resources is provided by the system of record. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
