Definition Type: ComplexType
Name: ActualType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: ManufacturingComponents.xsd
Abstract

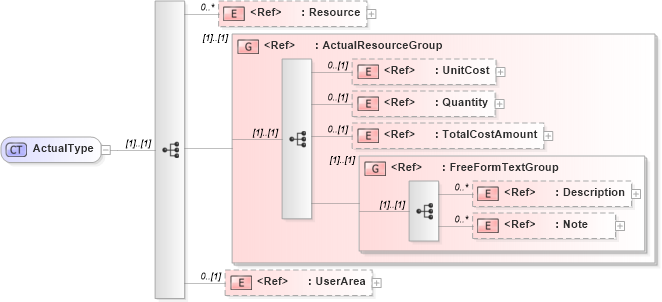

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into TotalCostAmount in schema fields_xsd Drilldown into Quantity in schema fields_xsd Drilldown into UnitCost in schema components_xsd Drilldown into ActualResourceGroup in schema manufacturingcomponents_xsd Drilldown into Resource in schema manufacturingcomponents_xsdXSD Diagram of ActualType in schema manufacturingcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ActualType">
    <xsd:sequence>
        <xsd:element ref="Resource" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="ActualResourceGroup" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Resource nsA:Resource 0 unbounded
UnitCost nsA:UnitCost 0 (1)
Quantity nsA:Quantity 0 (1)
TotalCostAmount nsA:TotalCostAmount 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:ActualResourceGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:Actual
