Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: AllocateResourceHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:HeaderType
Containing Schema: AllocateResource.xsd
Abstract

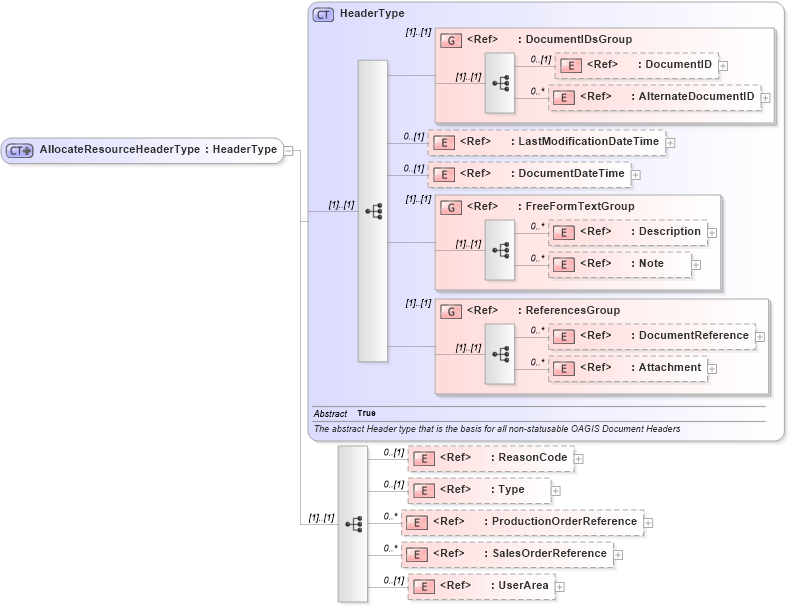

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into SalesOrderReference in schema components_xsd Drilldown into ProductionOrderReference in schema components_xsd Drilldown into Type in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsdXSD Diagram of AllocateResourceHeaderType in schema allocateresource_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="AllocateResourceHeaderType">
    <xsd:complexContent>
        <xsd:extension base="HeaderType">
            <xsd:sequence>
                <xsd:element ref="ReasonCode" minOccurs="0" />
                <xsd:element ref="Type" minOccurs="0" />
                <xsd:element ref="ProductionOrderReference" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">A Production Order is likely listed here.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="SalesOrderReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
ReasonCode nsA:ReasonCode 0 (1)
Type nsA:Type 0 (1)
ProductionOrderReference nsA:ProductionOrderReference 0 unbounded
SalesOrderReference nsA:SalesOrderReference 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:AllocateResourceHeader
