Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: BOMHeader
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:BOMHeaderType
Containing Schema: BOM.xsd
Abstract
Documentation:
Information that generally describes the Bill of Material Structure and its contents.

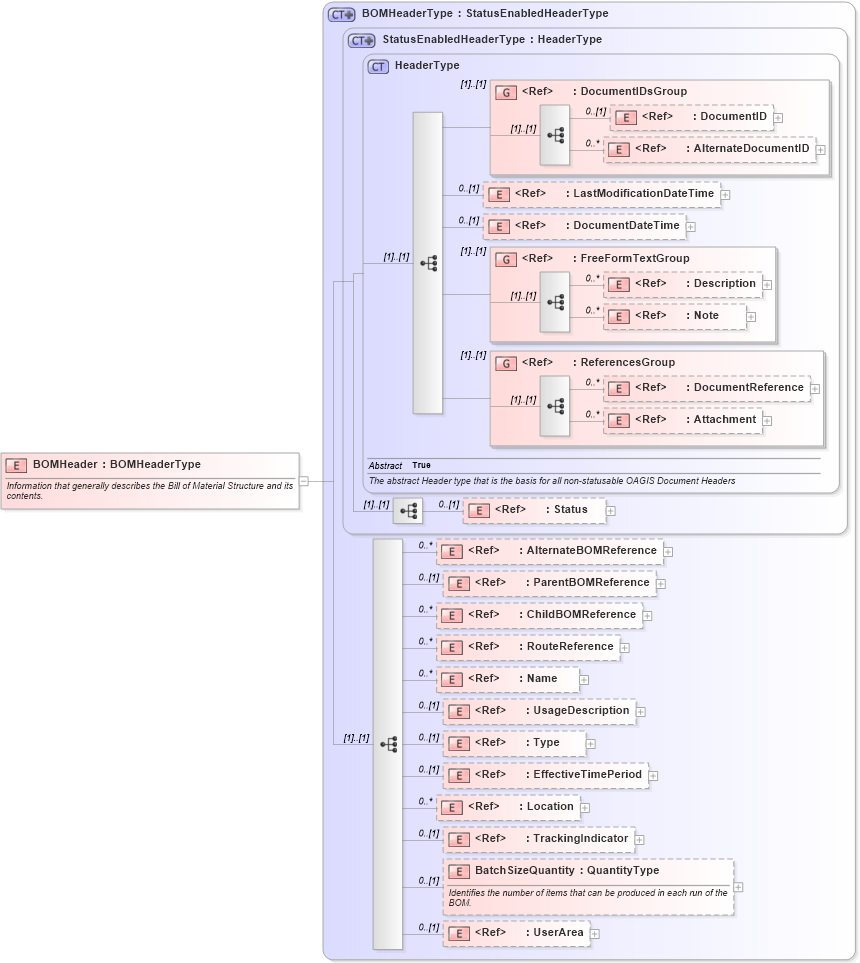

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into BatchSizeQuantity in schema bom_xsd Drilldown into TrackingIndicator in schema fields_xsd Drilldown into Location in schema components_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into Type in schema fields_xsd Drilldown into UsageDescription in schema fields_xsd Drilldown into Name in schema fields_xsd Drilldown into RouteReference in schema components_xsd Drilldown into ChildBOMReference in schema components_xsd Drilldown into ParentBOMReference in schema components_xsd Drilldown into AlternateBOMReference in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into StatusEnabledHeaderType in schema components_xsd Drilldown into BOMHeaderType in schema bom_xsdXSD Diagram of BOMHeader in schema bom_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="BOMHeader" type="BOMHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Information that generally describes the Bill of Material Structure and its contents.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
AlternateBOMReference nsA:AlternateBOMReference 0 unbounded
ParentBOMReference nsA:ParentBOMReference 0 (1)
ChildBOMReference nsA:ChildBOMReference 0 unbounded
RouteReference nsA:RouteReference 0 unbounded
Name nsA:Name 0 unbounded
UsageDescription nsA:UsageDescription 0 (1)
Type nsA:Type 0 (1)
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
Location nsA:Location 0 unbounded
TrackingIndicator nsA:TrackingIndicator 0 (1)
BatchSizeQuantity nsA:BatchSizeQuantity 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
