Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ChangeStatus
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ChangeStatusType
Containing Schema: Meta.xsd
Abstract

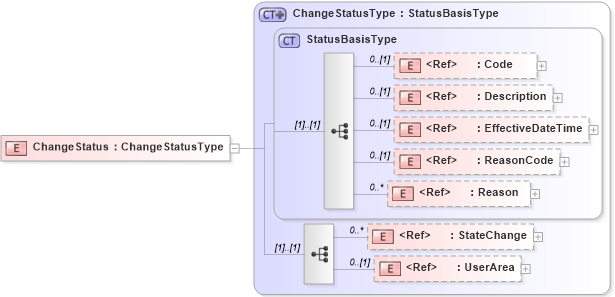

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into StateChange in schema meta_xsd Drilldown into Reason in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into EffectiveDateTime in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into Code in schema fields_xsd Drilldown into StatusBasisType in schema meta_xsd Drilldown into ChangeStatusType in schema meta_xsdXSD Diagram of ChangeStatus in schema meta_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ChangeStatus" type="ChangeStatusType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code nsA:Code 0 (1)
Description nsA:Description 0 (1)
EffectiveDateTime nsA:EffectiveDateTime 0 (1)
ReasonCode nsA:ReasonCode 0 (1)
Reason nsA:Reason 0 unbounded
StateChange nsA:StateChange 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
