Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: ChangeStatusType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:StatusBasisType
Containing Schema: Meta.xsd
Abstract

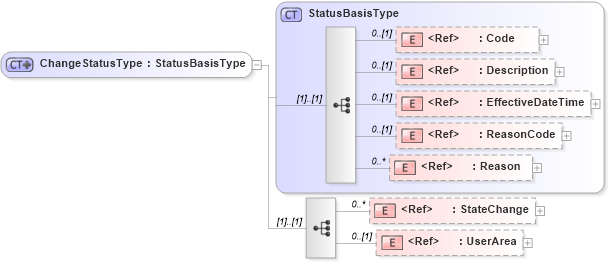

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into StateChange in schema meta_xsd Drilldown into Reason in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into EffectiveDateTime in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into Code in schema fields_xsd Drilldown into StatusBasisType in schema meta_xsdXSD Diagram of ChangeStatusType in schema meta_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ChangeStatusType">
    <xsd:complexContent>
        <xsd:extension base="StatusBasisType">
            <xsd:sequence>
                <xsd:element ref="StateChange" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code nsA:Code 0 (1)
Description nsA:Description 0 (1)
EffectiveDateTime nsA:EffectiveDateTime 0 (1)
ReasonCode nsA:ReasonCode 0 (1)
Reason nsA:Reason 0 unbounded
StateChange nsA:StateChange 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ChangeStatus
