Definition Type: Element
Name: DataArea
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetCarrierRouteDataAreaType
Containing Schema: GetCarrierRoute.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Is where the information that the BOD message carries is provided, in this case GetCarrierRoute. The information consists of a Verb and one or more Nouns. The verb (Get) indicates the action to be performed on the Noun (CarrierRoute).
Collapse XSD Schema Diagram:

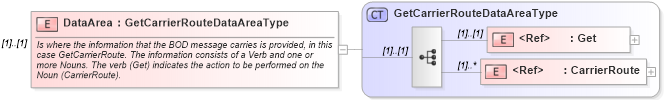

Drilldown into CarrierRoute in schema carrierroute_xsd Drilldown into Get in schema meta_xsd Drilldown into GetCarrierRouteDataAreaType in schema getcarrierroute_xsdXSD Diagram of DataArea in schema getcarrierroute_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="GetCarrierRouteDataAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case GetCarrierRoute. The information consists of a Verb and one or more Nouns. The verb (Get) indicates the action to be performed on the Noun (CarrierRoute).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Get nsA:Get (1) (1)
CarrierRoute nsA:CarrierRoute (1) unbounded
Collapse Derivation Tree:
