Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: CarrierRoute
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:CarrierRouteType
Containing Schema: CarrierRoute.xsd
Abstract
Documentation:
Describes a scheduled journey that a particular goods transportation service provider (freight carrier) is requested to perform on the behalf of a shipper, customer or other transportation corrdinator. The journey may contain one or more stops. There are many possible business applications in several environments that may use this capability. A CarrierRoute is typically generated by a transportation planning system to coordinate and optimize the movement of many goods shipment to reduce overall freight cost, improve overall delivery schedules, and ensure that a carrier's equipment is utilized efficiently. Other business systems typically interested in a CarrierRoute document include supply chain execution, supply chain visibility, warehouse management, and transportaion management systems.

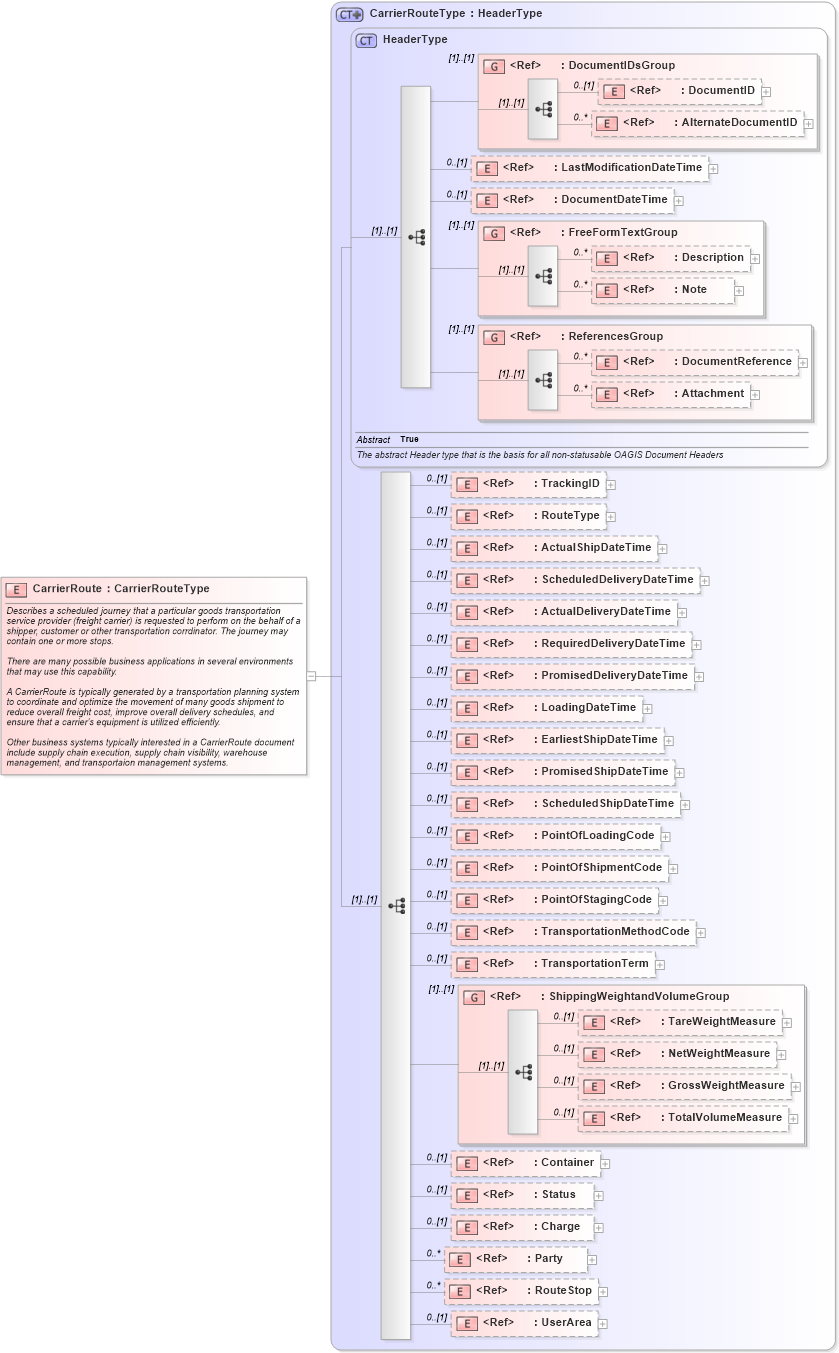

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into RouteStop in schema carrierroute_xsd Drilldown into Party in schema components_xsd Drilldown into Charge in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Container in schema logisticscomponents_xsd Drilldown into TotalVolumeMeasure in schema fields_xsd Drilldown into GrossWeightMeasure in schema fields_xsd Drilldown into NetWeightMeasure in schema fields_xsd Drilldown into TareWeightMeasure in schema fields_xsd Drilldown into ShippingWeightandVolumeGroup in schema components_xsd Drilldown into TransportationTerm in schema components_xsd Drilldown into TransportationMethodCode in schema fields_xsd Drilldown into PointOfStagingCode in schema fields_xsd Drilldown into PointOfShipmentCode in schema fields_xsd Drilldown into PointOfLoadingCode in schema fields_xsd Drilldown into ScheduledShipDateTime in schema fields_xsd Drilldown into PromisedShipDateTime in schema fields_xsd Drilldown into EarliestShipDateTime in schema fields_xsd Drilldown into LoadingDateTime in schema fields_xsd Drilldown into PromisedDeliveryDateTime in schema fields_xsd Drilldown into RequiredDeliveryDateTime in schema fields_xsd Drilldown into ActualDeliveryDateTime in schema fields_xsd Drilldown into ScheduledDeliveryDateTime in schema fields_xsd Drilldown into ActualShipDateTime in schema fields_xsd Drilldown into RouteType in schema carrierroute_xsd Drilldown into TrackingID in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into CarrierRouteType in schema carrierroute_xsdXSD Diagram of CarrierRoute in schema carrierroute_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="CarrierRoute" type="CarrierRouteType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Describes a scheduled journey that a particular goods transportation service provider (freight carrier) is requested to perform on the behalf of a shipper, customer or other transportation corrdinator. The journey may contain one or more stops.

There are many possible business applications in several environments that may use this capability.

A CarrierRoute is typically generated by a transportation planning system to coordinate and optimize the movement of many goods shipment to reduce overall freight cost, improve overall delivery schedules, and ensure that a carrier's equipment is utilized efficiently.

Other business systems typically interested in a CarrierRoute document include supply chain execution, supply chain visibility, warehouse management, and transportaion management systems.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
TrackingID nsA:TrackingID 0 (1)
RouteType nsA:RouteType 0 (1)
ActualShipDateTime nsA:ActualShipDateTime 0 (1)
ScheduledDeliveryDateTime nsA:ScheduledDeliveryDateTime 0 (1)
ActualDeliveryDateTime nsA:ActualDeliveryDateTime 0 (1)
RequiredDeliveryDateTime nsA:RequiredDeliveryDateTime 0 (1)
PromisedDeliveryDateTime nsA:PromisedDeliveryDateTime 0 (1)
LoadingDateTime nsA:LoadingDateTime 0 (1)
EarliestShipDateTime nsA:EarliestShipDateTime 0 (1)
PromisedShipDateTime nsA:PromisedShipDateTime 0 (1)
ScheduledShipDateTime nsA:ScheduledShipDateTime 0 (1)
PointOfLoadingCode nsA:PointOfLoadingCode 0 (1)
PointOfShipmentCode nsA:PointOfShipmentCode 0 (1)
PointOfStagingCode nsA:PointOfStagingCode 0 (1)
TransportationMethodCode nsA:TransportationMethodCode 0 (1)
TransportationTerm nsA:TransportationTerm 0 (1)
TareWeightMeasure nsA:TareWeightMeasure 0 (1)
NetWeightMeasure nsA:NetWeightMeasure 0 (1)
GrossWeightMeasure nsA:GrossWeightMeasure 0 (1)
TotalVolumeMeasure nsA:TotalVolumeMeasure 0 (1)
Container nsA:Container 0 (1)
Status nsA:Status 0 (1)
Charge nsA:Charge 0 (1)
Party nsA:Party 0 unbounded
RouteStop nsA:RouteStop 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
<xs:group> nsA:ShippingWeightandVolumeGroup (1) (1)
Collapse Derivation Tree:
