Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: DataArea
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SyncShipmentScheduleDataAreaType
Containing Schema: SyncShipmentSchedule.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Is where the information that the BOD message carries is provided, in this case SyncShipmentSchedule. The information consists of a Verb and one or more Nouns. The verb (Sync) indicates the action to be performed on the Noun (ShipmentSchedule).
Collapse XSD Schema Diagram:

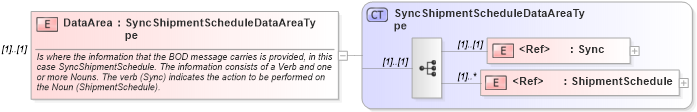

Drilldown into ShipmentSchedule in schema shipmentschedule_xsd Drilldown into Sync in schema meta_xsd Drilldown into SyncShipmentScheduleDataAreaType in schema syncshipmentschedule_xsdXSD Diagram of DataArea in schema syncshipmentschedule_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="SyncShipmentScheduleDataAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case SyncShipmentSchedule. The information consists of a Verb and one or more Nouns. The verb (Sync) indicates the action to be performed on the Noun (ShipmentSchedule).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Sync nsA:Sync (1) (1)
ShipmentSchedule nsA:ShipmentSchedule (1) unbounded
Collapse Derivation Tree:
