Definition Type: Element
Name: DispatchListLine
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:DispatchListLineType
Containing Schema: DispatchList.xsd
Abstract

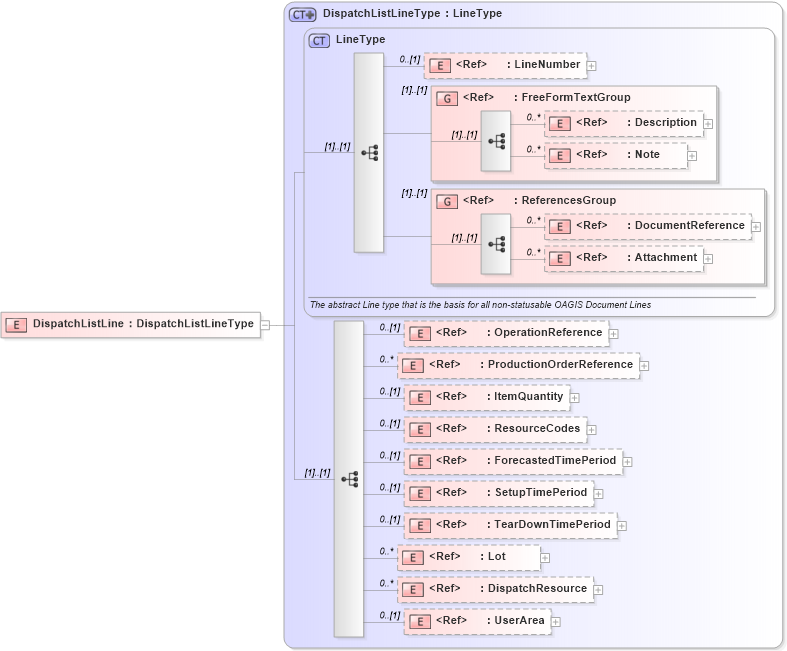

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into DispatchResource in schema dispatchlist_xsd Drilldown into Lot in schema components_xsd Drilldown into TearDownTimePeriod in schema components_xsd Drilldown into SetupTimePeriod in schema components_xsd Drilldown into ForecastedTimePeriod in schema components_xsd Drilldown into ResourceCodes in schema components_xsd Drilldown into ItemQuantity in schema fields_xsd Drilldown into ProductionOrderReference in schema components_xsd Drilldown into OperationReference in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into DispatchListLineType in schema dispatchlist_xsdXSD Diagram of DispatchListLine in schema dispatchlist_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DispatchListLine" type="DispatchListLineType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
OperationReference nsA:OperationReference 0 (1)
ProductionOrderReference nsA:ProductionOrderReference 0 unbounded
ItemQuantity nsA:ItemQuantity 0 (1)
ResourceCodes nsA:ResourceCodes 0 (1)
ForecastedTimePeriod nsA:ForecastedTimePeriod 0 (1)
SetupTimePeriod nsA:SetupTimePeriod 0 (1)
TearDownTimePeriod nsA:TearDownTimePeriod 0 (1)
Lot nsA:Lot 0 unbounded
DispatchResource nsA:DispatchResource 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
