Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: EmployeeWorkTime
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:EmployeeWorkTimeType
Containing Schema: EmployeeWorkTime.xsd
Abstract
Documentation:
Refers to time sheet information for an employee. This information may be collected in an external source, and then transferred to a HRMS or Payroll application.

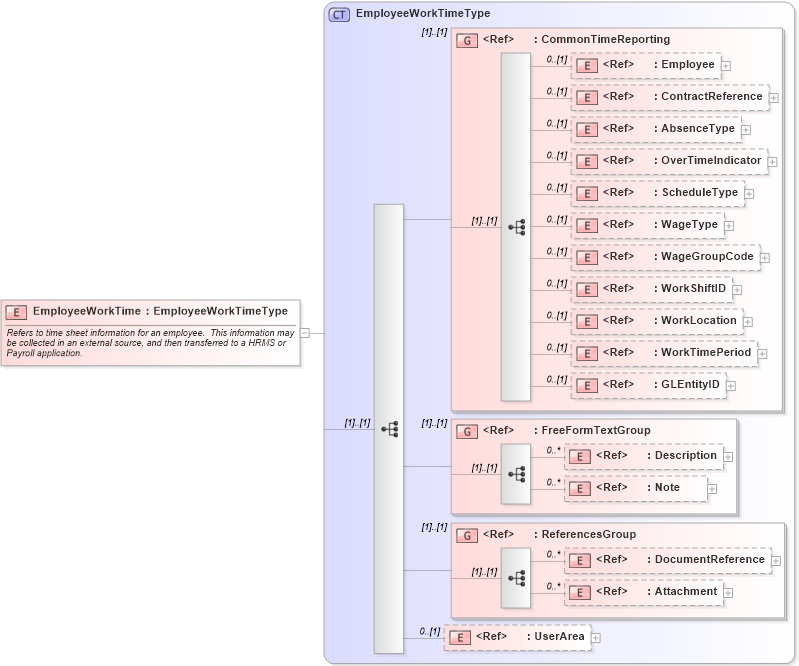

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into GLEntityID in schema fields_xsd Drilldown into WorkTimePeriod in schema components_xsd Drilldown into WorkLocation in schema components_xsd Drilldown into WorkShiftID in schema fields_xsd Drilldown into WageGroupCode in schema fields_xsd Drilldown into WageType in schema fields_xsd Drilldown into ScheduleType in schema fields_xsd Drilldown into OverTimeIndicator in schema fields_xsd Drilldown into AbsenceType in schema fields_xsd Drilldown into ContractReference in schema components_xsd Drilldown into Employee in schema components_xsd Drilldown into CommonTimeReporting in schema components_xsd Drilldown into EmployeeWorkTimeType in schema employeeworktime_xsdXSD Diagram of EmployeeWorkTime in schema employeeworktime_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="EmployeeWorkTime" type="EmployeeWorkTimeType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Refers to time sheet information for an employee.  This information may be collected in an external source, and then transferred to a HRMS or Payroll application.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Employee nsA:Employee 0 (1)
ContractReference nsA:ContractReference 0 (1)
AbsenceType nsA:AbsenceType 0 (1)
OverTimeIndicator nsA:OverTimeIndicator 0 (1)
ScheduleType nsA:ScheduleType 0 (1)
WageType nsA:WageType 0 (1)
WageGroupCode nsA:WageGroupCode 0 (1)
WorkShiftID nsA:WorkShiftID 0 (1)
WorkLocation nsA:WorkLocation 0 (1)
WorkTimePeriod nsA:WorkTimePeriod 0 (1)
GLEntityID nsA:GLEntityID 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:CommonTimeReporting (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
