Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: EngineeringChangeHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:HeaderType
Containing Schema: EngineeringChangeOrder.xsd
Abstract

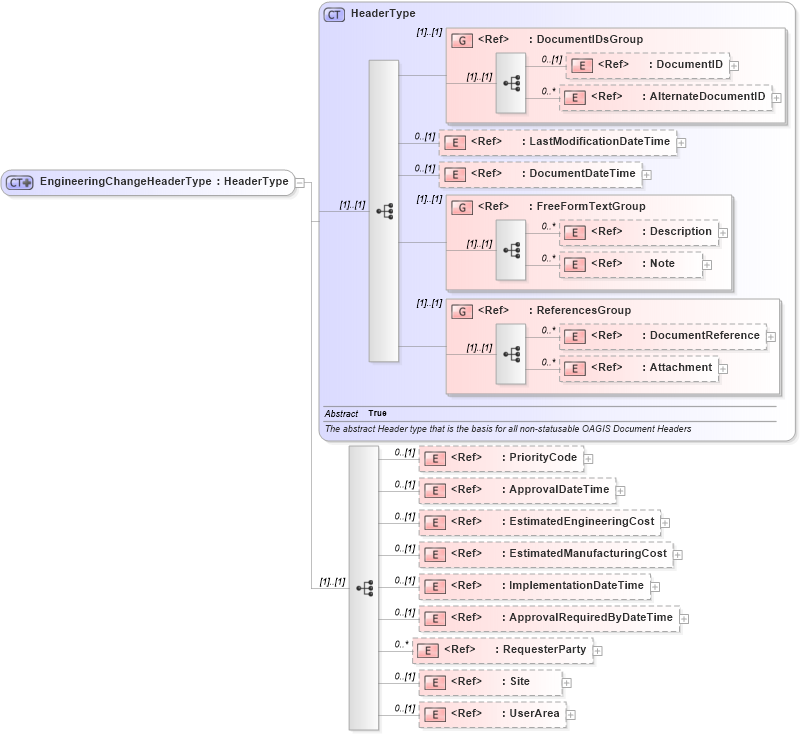

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Site in schema components_xsd Drilldown into RequesterParty in schema components_xsd Drilldown into ApprovalRequiredByDateTime in schema fields_xsd Drilldown into ImplementationDateTime in schema fields_xsd Drilldown into EstimatedManufacturingCost in schema fields_xsd Drilldown into EstimatedEngineeringCost in schema fields_xsd Drilldown into ApprovalDateTime in schema fields_xsd Drilldown into PriorityCode in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsdXSD Diagram of EngineeringChangeHeaderType in schema engineeringchangeorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="EngineeringChangeHeaderType">
    <xsd:complexContent>
        <xsd:extension base="HeaderType">
            <xsd:sequence>
                <xsd:element ref="PriorityCode" minOccurs="0" />
                <xsd:element ref="ApprovalDateTime" minOccurs="0" />
                <xsd:element ref="EstimatedEngineeringCost" minOccurs="0" />
                <xsd:element ref="EstimatedManufacturingCost" minOccurs="0" />
                <xsd:element ref="ImplementationDateTime" minOccurs="0" />
                <xsd:element ref="ApprovalRequiredByDateTime" minOccurs="0" />
                <xsd:element ref="RequesterParty" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Site" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
PriorityCode nsA:PriorityCode 0 (1)
ApprovalDateTime nsA:ApprovalDateTime 0 (1)
EstimatedEngineeringCost nsA:EstimatedEngineeringCost 0 (1)
EstimatedManufacturingCost nsA:EstimatedManufacturingCost 0 (1)
ImplementationDateTime nsA:ImplementationDateTime 0 (1)
ApprovalRequiredByDateTime nsA:ApprovalRequiredByDateTime 0 (1)
RequesterParty nsA:RequesterParty 0 unbounded
Site nsA:Site 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:EngineeringChangeHeader
