Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: EngineeringChangeRevisedBOM
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:RevisedBOMType
Containing Schema: EngineeringChangeOrder.xsd
Abstract
Documentation:
Describes the components of a Bill of Material that will be effected by a given engineering Change.

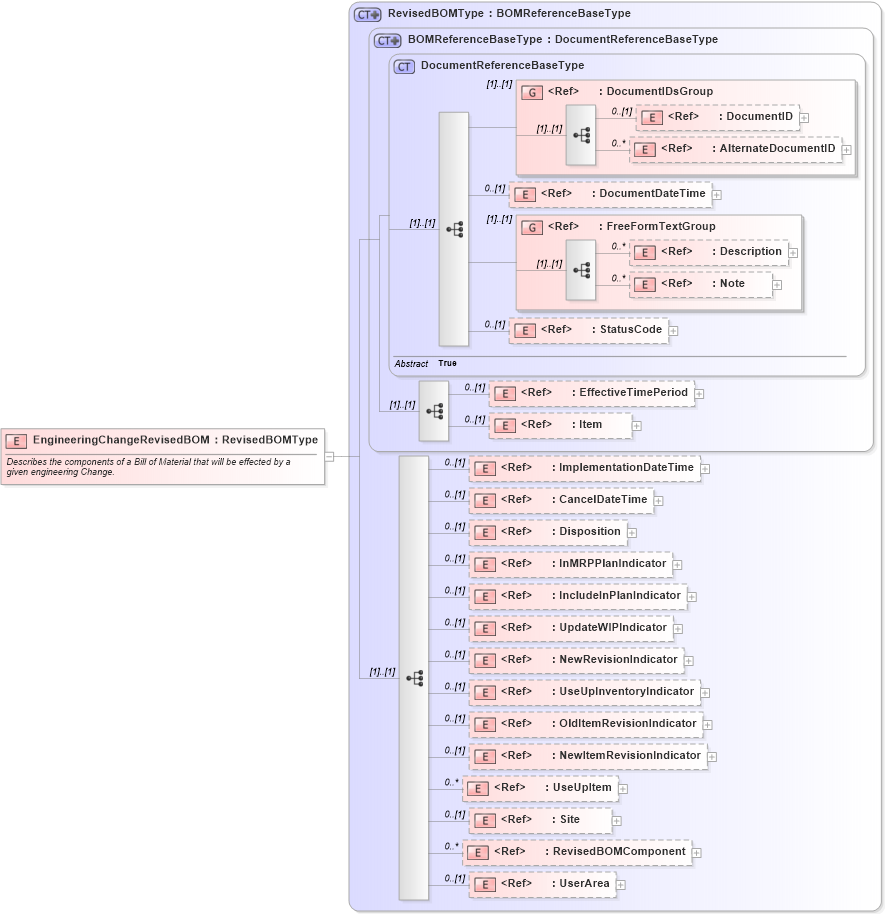

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into RevisedBOMComponent in schema engineeringchangeorder_xsd Drilldown into Site in schema components_xsd Drilldown into UseUpItem in schema components_xsd Drilldown into NewItemRevisionIndicator in schema fields_xsd Drilldown into OldItemRevisionIndicator in schema fields_xsd Drilldown into UseUpInventoryIndicator in schema fields_xsd Drilldown into NewRevisionIndicator in schema fields_xsd Drilldown into UpdateWIPIndicator in schema fields_xsd Drilldown into IncludeInPlanIndicator in schema fields_xsd Drilldown into InMRPPlanIndicator in schema fields_xsd Drilldown into Disposition in schema components_xsd Drilldown into CancelDateTime in schema fields_xsd Drilldown into ImplementationDateTime in schema fields_xsd Drilldown into Item in schema components_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into StatusCode in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into DocumentReferenceBaseType in schema components_xsd Drilldown into BOMReferenceBaseType in schema components_xsd Drilldown into RevisedBOMType in schema engineeringchangeorder_xsdXSD Diagram of EngineeringChangeRevisedBOM in schema engineeringchangeorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="EngineeringChangeRevisedBOM" type="RevisedBOMType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Describes the components of a Bill of Material that will be effected by a given engineering Change. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
StatusCode nsA:StatusCode 0 (1)
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
Item nsA:Item 0 (1)
ImplementationDateTime nsA:ImplementationDateTime 0 (1)
CancelDateTime nsA:CancelDateTime 0 (1)
Disposition nsA:Disposition 0 (1)
InMRPPlanIndicator nsA:InMRPPlanIndicator 0 (1)
IncludeInPlanIndicator nsA:IncludeInPlanIndicator 0 (1)
UpdateWIPIndicator nsA:UpdateWIPIndicator 0 (1)
NewRevisionIndicator nsA:NewRevisionIndicator 0 (1)
UseUpInventoryIndicator nsA:UseUpInventoryIndicator 0 (1)
OldItemRevisionIndicator nsA:OldItemRevisionIndicator 0 (1)
NewItemRevisionIndicator nsA:NewItemRevisionIndicator 0 (1)
UseUpItem nsA:UseUpItem 0 unbounded
Site nsA:Site 0 (1)
RevisedBOMComponent nsA:RevisedBOMComponent 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
