Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: EngineeringChangeRevisedRouteOperation
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:RevisedRouteOperationType
Containing Schema: EngineeringChangeOrder.xsd
Abstract
Documentation:
Information specifying the operations and there order for the specified routing.

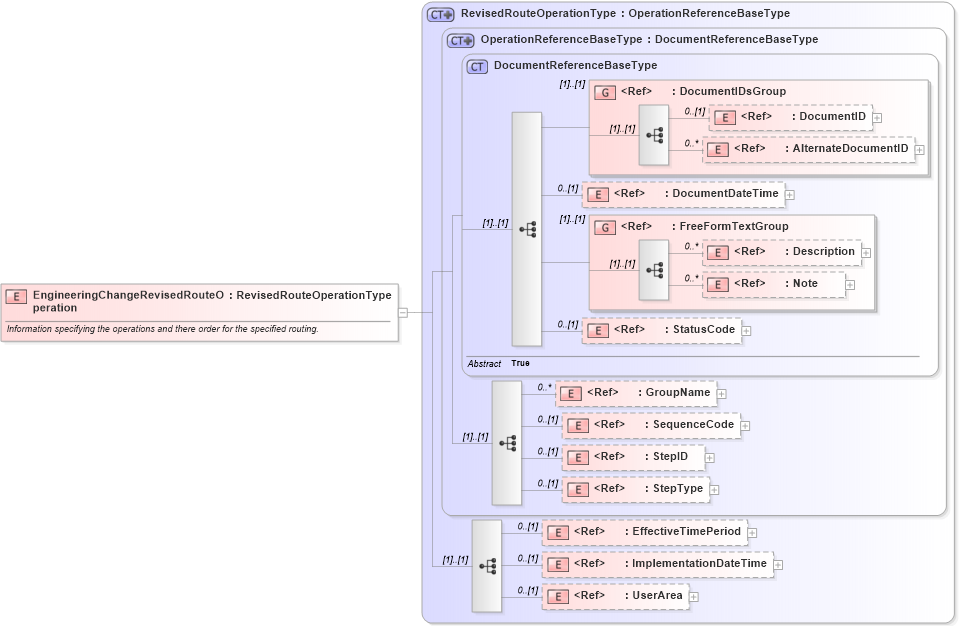

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ImplementationDateTime in schema fields_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into StepType in schema fields_xsd Drilldown into StepID in schema fields_xsd Drilldown into SequenceCode in schema fields_xsd Drilldown into GroupName in schema fields_xsd Drilldown into StatusCode in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into DocumentReferenceBaseType in schema components_xsd Drilldown into OperationReferenceBaseType in schema components_xsd Drilldown into RevisedRouteOperationType in schema engineeringchangeorder_xsdXSD Diagram of EngineeringChangeRevisedRouteOperation in schema engineeringchangeorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="EngineeringChangeRevisedRouteOperation" type="RevisedRouteOperationType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Information specifying the operations and there order for the specified routing.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
StatusCode nsA:StatusCode 0 (1)
GroupName nsA:GroupName 0 unbounded
SequenceCode nsA:SequenceCode 0 (1)
StepID nsA:StepID 0 (1)
StepType nsA:StepType 0 (1)
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
ImplementationDateTime nsA:ImplementationDateTime 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
