Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: EngineeringWorkRequest
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:EngineeringWorkRequestType
Containing Schema: EngineeringWorkDocument.xsd
Abstract
Documentation:
STEP "work_request" entity. AP214-FDIS Definition: A Work_request is the solicitation for some work to be done.

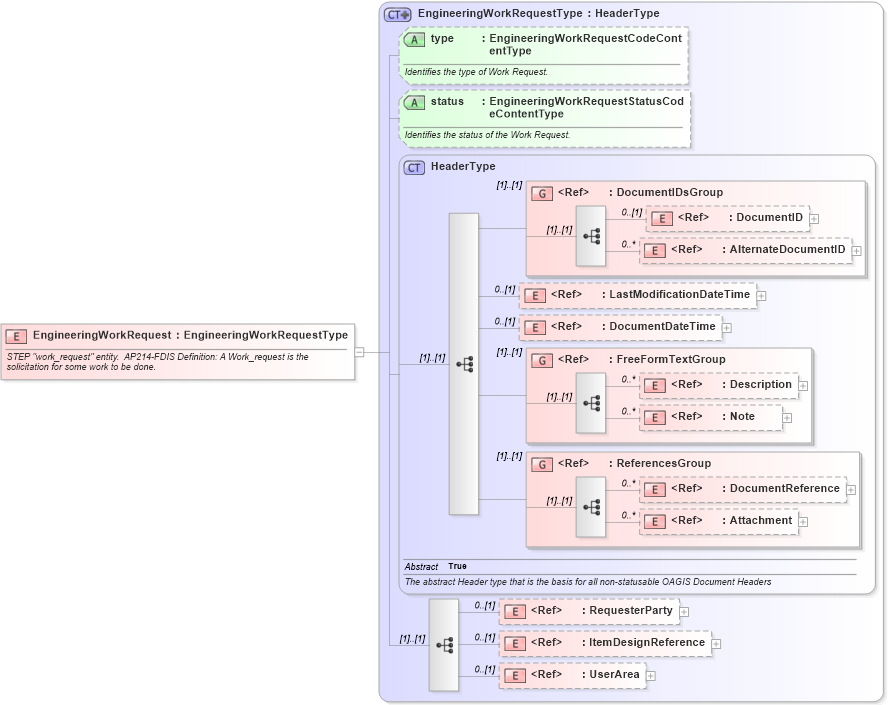

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ItemDesignReference in schema engineeringworkdocument_xsd Drilldown into RequesterParty in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into status in schema engineeringworkdocument_xsd Drilldown into type in schema engineeringworkdocument_xsd Drilldown into EngineeringWorkRequestType in schema engineeringworkdocument_xsdXSD Diagram of EngineeringWorkRequest in schema engineeringworkdocument_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="EngineeringWorkRequest" type="EngineeringWorkRequestType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">STEP "work_request" entity.  AP214-FDIS Definition: A Work_request is the solicitation for some work to be done.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
RequesterParty nsA:RequesterParty 0 (1)
ItemDesignReference nsA:ItemDesignReference 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type (Optional)
status nsA:status (Optional)
Collapse Derivation Tree:
