Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: Facility
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:FacilityType
Containing Schema: Components.xsd
Abstract
Documentation:
A Facility identifies a location within an entity. The facility may have sub-locators identified using a sequenced identification notation e.g. Warehouse A100 Sub-Location 11, Row R10 would be represented as an array of three Facility elements with values as A100, 11, R10, name attribute as Warehouse, Sub-Location and Row and sequence attribute as 1,2 and 3 respectively.

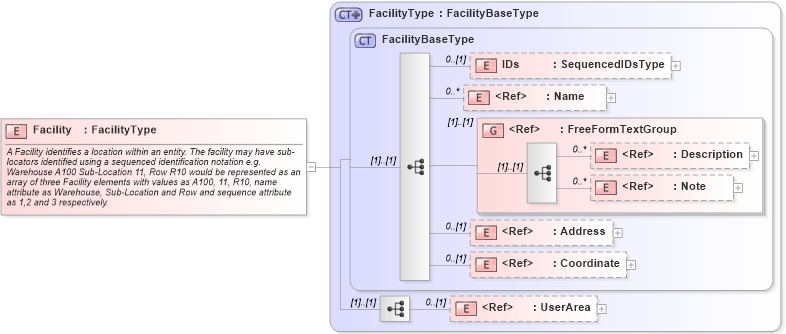

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Coordinate in schema components_xsd Drilldown into Address in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Name in schema fields_xsd Drilldown into IDs in schema components_xsd Drilldown into FacilityBaseType in schema components_xsd Drilldown into FacilityType in schema components_xsdXSD Diagram of Facility in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="Facility" type="FacilityType">
    <xsd:annotation>
        <xsd:documentation>A Facility identifies a location within an entity. The facility may have sub-locators identified using a sequenced identification notation e.g. Warehouse A100 Sub-Location 11, Row R10 would be represented as an array of three Facility elements with values as A100, 11, R10, name attribute as Warehouse, Sub-Location and Row and sequence attribute as 1,2 and 3 respectively.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IDs nsA:IDs 0 (1)
Name nsA:Name 0 unbounded
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Address nsA:Address 0 (1)
Coordinate nsA:Coordinate 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
