Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: FacilityBaseType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract

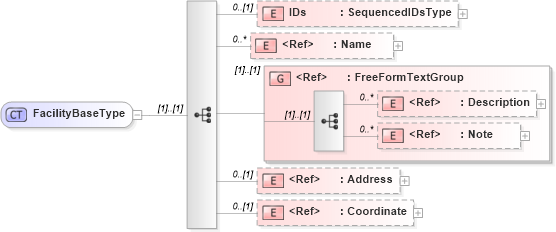

Collapse XSD Schema Diagram:
Drilldown into Coordinate in schema components_xsd Drilldown into Address in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Name in schema fields_xsd Drilldown into IDs in schema components_xsdXSD Diagram of FacilityBaseType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="FacilityBaseType">
    <xsd:sequence>
        <xsd:element name="IDs" type="SequencedIDsType" minOccurs="0" />
        <xsd:element ref="Name" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="FreeFormTextGroup" />
        <xsd:element ref="Address" minOccurs="0" />
        <xsd:element ref="Coordinate" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IDs nsA:IDs 0 (1)
Name nsA:Name 0 unbounded
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Address nsA:Address 0 (1)
Coordinate nsA:Coordinate 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:FacilityType
