Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: FinInstnId
Namespace: urn:swift:xsd:$pain.002.001.01
Type: ist:FinancialInstitutionIdentification1
Containing Schema: pain.002.001.01.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

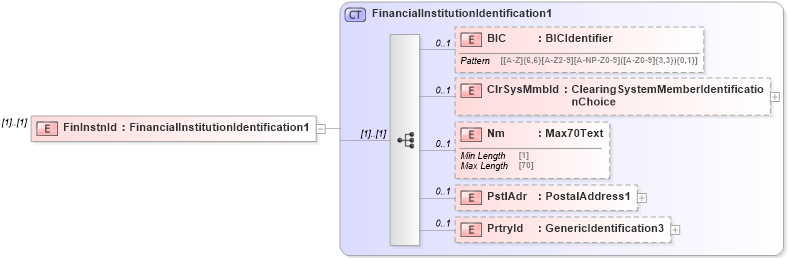

Collapse XSD Schema Diagram:
Drilldown into PrtryId in schema pain_002_001_01_xsd Drilldown into PstlAdr in schema pain_002_001_01_xsd Drilldown into Nm in schema pain_002_001_01_xsd Drilldown into ClrSysMmbId in schema pain_002_001_01_xsd Drilldown into BIC in schema pain_002_001_01_xsd Drilldown into FinancialInstitutionIdentification1 in schema pain_002_001_01_xsdXSD Diagram of FinInstnId in schema pain_002_001_01_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:element name="FinInstnId" type="FinancialInstitutionIdentification1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BIC ist:BIC 0 1
ClrSysMmbId ist:ClrSysMmbId 0 1
Nm ist:Nm 0 1
PstlAdr ist:PstlAdr 0 1
PrtryId ist:PrtryId 0 1
Collapse Derivation Tree:
