Definition Type: ComplexType
Name: HazardousMaterialABIEType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Documentation:
HazardousMaterialABIEType is logically derived from UN/CEFACT TBG17 ABIE HazardousMaterialType as defined in the Reusable Aggregate Business Information Entity (RUABIE) XML Schema file.
Collapse XSD Schema Diagram:

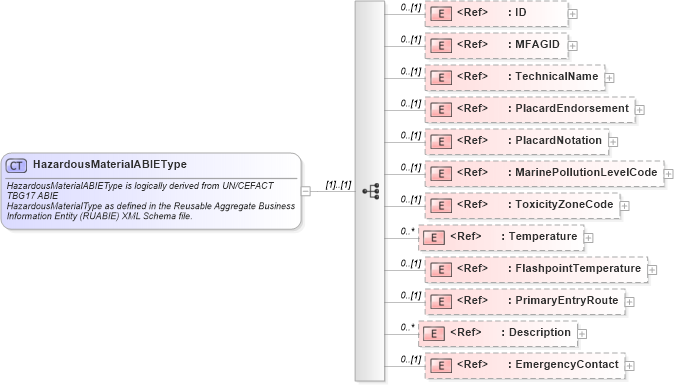

Drilldown into EmergencyContact in schema components_xsd Drilldown into Description in schema fields_xsd Drilldown into PrimaryEntryRoute in schema fields_xsd Drilldown into FlashpointTemperature in schema fields_xsd Drilldown into Temperature in schema fields_xsd Drilldown into ToxicityZoneCode in schema fields_xsd Drilldown into MarinePollutionLevelCode in schema fields_xsd Drilldown into PlacardNotation in schema fields_xsd Drilldown into PlacardEndorsement in schema fields_xsd Drilldown into TechnicalName in schema fields_xsd Drilldown into MFAGID in schema fields_xsd Drilldown into ID in schema fields_xsdXSD Diagram of HazardousMaterialABIEType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="HazardousMaterialABIEType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">HazardousMaterialABIEType is logically derived from UN/CEFACT TBG17 ABIE
HazardousMaterialType as defined in the Reusable Aggregate Business Information Entity (RUABIE) XML Schema file.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="MFAGID" minOccurs="0" />
        <xsd:element ref="TechnicalName" minOccurs="0" />
        <xsd:element ref="PlacardEndorsement" minOccurs="0" />
        <xsd:element ref="PlacardNotation" minOccurs="0" />
        <xsd:element ref="MarinePollutionLevelCode" minOccurs="0" />
        <xsd:element ref="ToxicityZoneCode" minOccurs="0" />
        <xsd:element ref="Temperature" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FlashpointTemperature" minOccurs="0" />
        <xsd:element ref="PrimaryEntryRoute" minOccurs="0" />
        <xsd:element ref="Description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="EmergencyContact" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
MFAGID nsA:MFAGID 0 (1)
TechnicalName nsA:TechnicalName 0 (1)
PlacardEndorsement nsA:PlacardEndorsement 0 (1)
PlacardNotation nsA:PlacardNotation 0 (1)
MarinePollutionLevelCode nsA:MarinePollutionLevelCode 0 (1)
ToxicityZoneCode nsA:ToxicityZoneCode 0 (1)
Temperature nsA:Temperature 0 unbounded
FlashpointTemperature nsA:FlashpointTemperature 0 (1)
PrimaryEntryRoute nsA:PrimaryEntryRoute 0 (1)
Description nsA:Description 0 unbounded
EmergencyContact nsA:EmergencyContact 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:HazardousMaterialType
