Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: HazardousMaterialType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:HazardousMaterialABIEType
Containing Schema: Components.xsd
Abstract

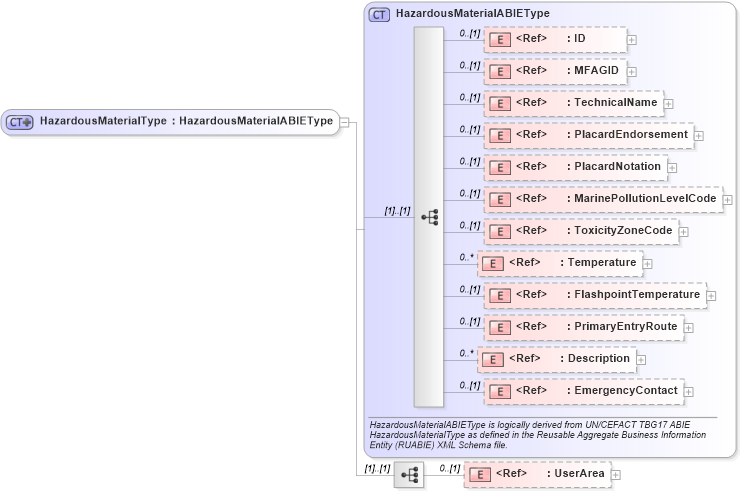

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into EmergencyContact in schema components_xsd Drilldown into Description in schema fields_xsd Drilldown into PrimaryEntryRoute in schema fields_xsd Drilldown into FlashpointTemperature in schema fields_xsd Drilldown into Temperature in schema fields_xsd Drilldown into ToxicityZoneCode in schema fields_xsd Drilldown into MarinePollutionLevelCode in schema fields_xsd Drilldown into PlacardNotation in schema fields_xsd Drilldown into PlacardEndorsement in schema fields_xsd Drilldown into TechnicalName in schema fields_xsd Drilldown into MFAGID in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into HazardousMaterialABIEType in schema components_xsdXSD Diagram of HazardousMaterialType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="HazardousMaterialType">
    <xsd:complexContent>
        <xsd:extension base="HazardousMaterialABIEType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
MFAGID nsA:MFAGID 0 (1)
TechnicalName nsA:TechnicalName 0 (1)
PlacardEndorsement nsA:PlacardEndorsement 0 (1)
PlacardNotation nsA:PlacardNotation 0 (1)
MarinePollutionLevelCode nsA:MarinePollutionLevelCode 0 (1)
ToxicityZoneCode nsA:ToxicityZoneCode 0 (1)
Temperature nsA:Temperature 0 unbounded
FlashpointTemperature nsA:FlashpointTemperature 0 (1)
PrimaryEntryRoute nsA:PrimaryEntryRoute 0 (1)
Description nsA:Description 0 unbounded
EmergencyContact nsA:EmergencyContact 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:HazardousMaterial
