Documentation for Open Applications Group (OAGIS)
Definition Type: Group
Name: InventoryTransactionGroup
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd

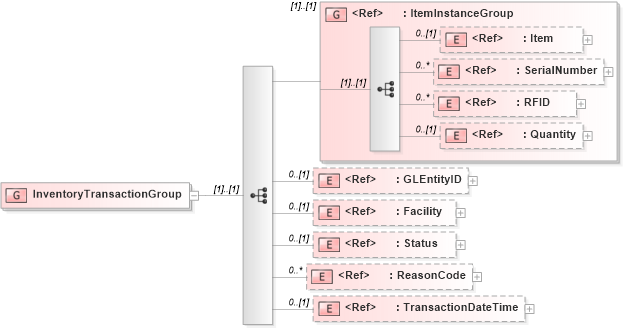

Collapse XSD Schema Diagram:
Drilldown into TransactionDateTime in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into Facility in schema components_xsd Drilldown into GLEntityID in schema fields_xsd Drilldown into Quantity in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into SerialNumber in schema fields_xsd Drilldown into Item in schema components_xsd Drilldown into ItemInstanceGroup in schema components_xsdXSD Diagram of InventoryTransactionGroup in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:group name="InventoryTransactionGroup">
    <xsd:sequence>
        <xsd:group ref="ItemInstanceGroup" />
        <xsd:element ref="GLEntityID" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">Idenitifies GLEntity owns the item and takes the credit or debit for the item on the balance sheet.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Facility" minOccurs="0" />
        <xsd:element ref="Status" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This determines the receipt routing of an item or part.

Examples of values include:
Customer consignment, Inspection, Vendor consignment, Blocked
Bonded, User defined

Possible synonyms are
Receipt Routing, Material Status, Material Condition Code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ReasonCode" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies the reason for the transaction.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="TransactionDateTime" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies the DateTime  at which the inventory transaction was carried out</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Item nsA:Item 0 (1)
SerialNumber nsA:SerialNumber 0 unbounded
RFID nsA:RFID 0 unbounded
Quantity nsA:Quantity 0 (1)
GLEntityID nsA:GLEntityID 0 (1)
Facility nsA:Facility 0 (1)
Status nsA:Status 0 (1)
ReasonCode nsA:ReasonCode 0 unbounded
TransactionDateTime nsA:TransactionDateTime 0 (1)
<xs:group> nsA:ItemInstanceGroup (1) (1)
