Definition Type: ComplexType
Name: ItemDesignReferenceType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: EngineeringWorkDocument.xsd
Abstract
Documentation:
Reference to an entity involved in describing designs. Refers either to a DesignItem (using ItemIds), an OrderItem (using ItemIds) a DesignDisciplineItemDefinition (using a DesignDisciplineItemDefinitionId), an Instance (using a DesignInstanceId), or a NextHigherAssembly (using a NextHigherAssemblyId).
Collapse XSD Schema Diagram:

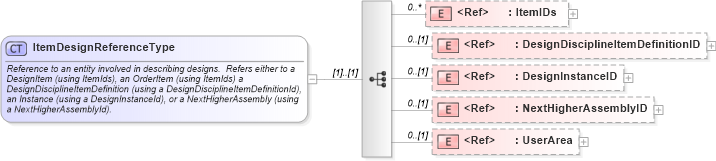

Drilldown into UserArea in schema fields_xsd Drilldown into NextHigherAssemblyID in schema fields_xsd Drilldown into DesignInstanceID in schema fields_xsd Drilldown into DesignDisciplineItemDefinitionID in schema fields_xsd Drilldown into ItemIDs in schema components_xsdXSD Diagram of ItemDesignReferenceType in schema engineeringworkdocument_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ItemDesignReferenceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Reference to an entity involved in describing designs.  Refers either to a DesignItem (using ItemIds), an OrderItem (using ItemIds) a DesignDisciplineItemDefinition (using a DesignDisciplineItemDefinitionId), an Instance (using a DesignInstanceId), or a NextHigherAssembly (using a NextHigherAssemblyId).</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ItemIDs" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DesignDisciplineItemDefinitionID" minOccurs="0" />
        <xsd:element ref="DesignInstanceID" minOccurs="0" />
        <xsd:element ref="NextHigherAssemblyID" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemIDs nsA:ItemIDs 0 unbounded
DesignDisciplineItemDefinitionID nsA:DesignDisciplineItemDefinitionID 0 (1)
DesignInstanceID nsA:DesignInstanceID 0 (1)
NextHigherAssemblyID nsA:NextHigherAssemblyID 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ChildAssemblyDesignReference, nsA:InstanceDefinition, nsA:IsAppliedTo, nsA:ItemDesignReference, nsA:ParentAssemblyDesignReference
