Definition Type: Element
Name: ParentAssemblyDesignReference
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ItemDesignReferenceType
Containing Schema: EngineeringWorkDocument.xsd
Abstract
Documentation:
Refers to an ItemInstance: the immediate parent assembly of the constituent.

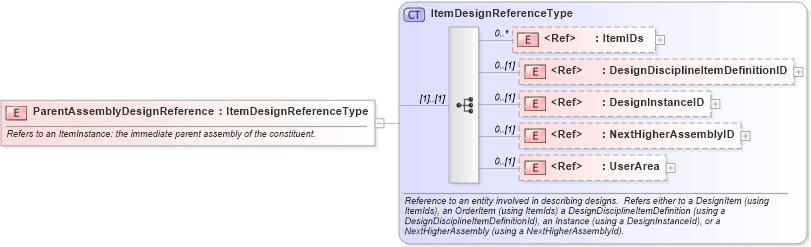

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into NextHigherAssemblyID in schema fields_xsd Drilldown into DesignInstanceID in schema fields_xsd Drilldown into DesignDisciplineItemDefinitionID in schema fields_xsd Drilldown into ItemIDs in schema components_xsd Drilldown into ItemDesignReferenceType in schema engineeringworkdocument_xsdXSD Diagram of ParentAssemblyDesignReference in schema engineeringworkdocument_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ParentAssemblyDesignReference" type="ItemDesignReferenceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Refers to an ItemInstance: the immediate parent assembly of the constituent.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemIDs nsA:ItemIDs 0 unbounded
DesignDisciplineItemDefinitionID nsA:DesignDisciplineItemDefinitionID 0 (1)
DesignInstanceID nsA:DesignInstanceID 0 (1)
NextHigherAssemblyID nsA:NextHigherAssemblyID 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
