Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: LabourActualType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: ManufacturingComponents.xsd
Abstract
Collapse XSD Schema Diagram:

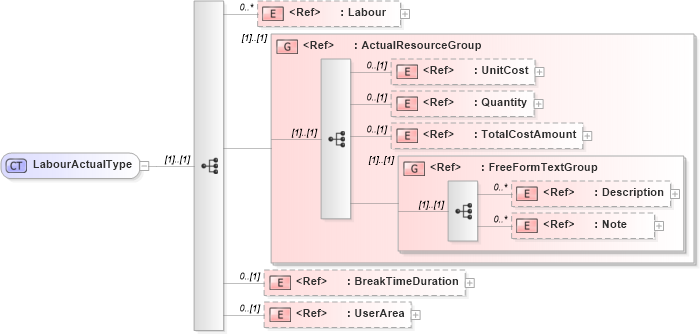

Drilldown into UserArea in schema fields_xsd Drilldown into BreakTimeDuration in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into TotalCostAmount in schema fields_xsd Drilldown into Quantity in schema fields_xsd Drilldown into UnitCost in schema components_xsd Drilldown into ActualResourceGroup in schema manufacturingcomponents_xsd Drilldown into Labour in schema manufacturingcomponents_xsdXSD Diagram of LabourActualType in schema manufacturingcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="LabourActualType">
    <xsd:sequence>
        <xsd:element ref="Labour" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="ActualResourceGroup" />
        <xsd:element ref="BreakTimeDuration" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Labour nsA:Labour 0 unbounded
UnitCost nsA:UnitCost 0 (1)
Quantity nsA:Quantity 0 (1)
TotalCostAmount nsA:TotalCostAmount 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
BreakTimeDuration nsA:BreakTimeDuration 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:ActualResourceGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:LabourActual
