Definition Type: Element
Name: Machine
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:MachineType
Containing Schema: ManufacturingComponents.xsd
Abstract
Documentation:
Idenitifies a machine.

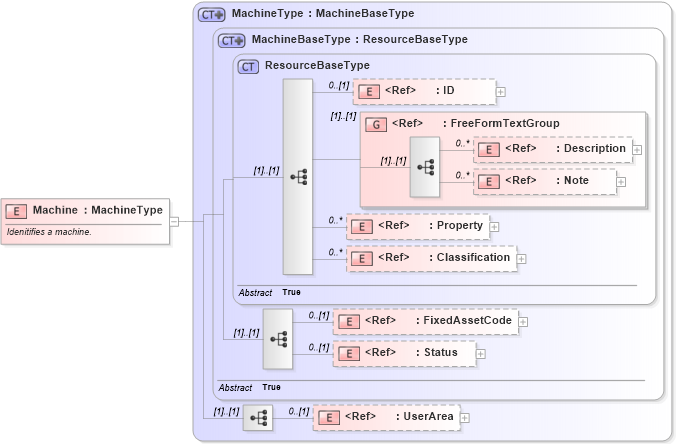

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into FixedAssetCode in schema fields_xsd Drilldown into Classification in schema components_xsd Drilldown into Property in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ID in schema fields_xsd Drilldown into ResourceBaseType in schema components_xsd Drilldown into MachineBaseType in schema manufacturingcomponents_xsd Drilldown into MachineType in schema manufacturingcomponents_xsdXSD Diagram of Machine in schema manufacturingcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="Machine" type="MachineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Idenitifies a machine.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Property nsA:Property 0 unbounded
Classification nsA:Classification 0 unbounded
FixedAssetCode nsA:FixedAssetCode 0 (1)
Status nsA:Status 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
