Definition Type: ComplexType
Name: ResourceBaseType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract True

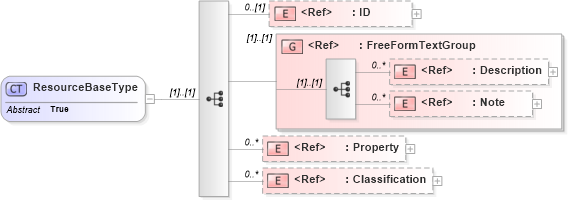

Collapse XSD Schema Diagram:
Drilldown into Classification in schema components_xsd Drilldown into Property in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ID in schema fields_xsdXSD Diagram of ResourceBaseType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ResourceBaseType" abstract="true">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" />
        <xsd:element ref="Property" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Classification" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Property nsA:Property 0 unbounded
Classification nsA:Classification 0 unbounded
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:LabourType, nsA:MachineBaseType, nsA:ResourceType, nsA:ToolBaseType
