Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: MaintenanceOrderLine
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:MaintenanceOrderLineType
Containing Schema: MaintenanceOrder.xsd
Abstract

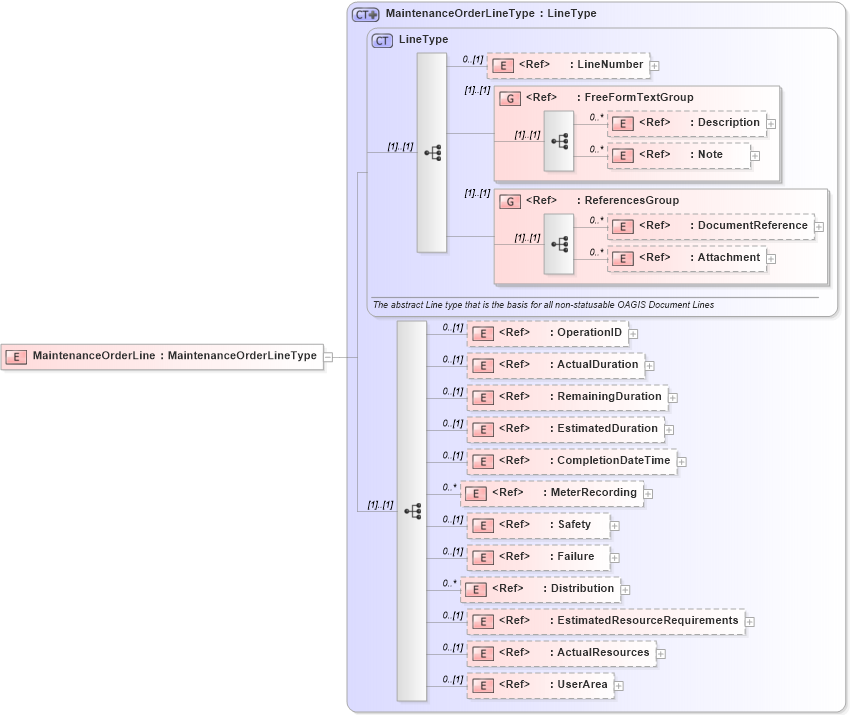

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ActualResources in schema manufacturingcomponents_xsd Drilldown into EstimatedResourceRequirements in schema manufacturingcomponents_xsd Drilldown into Distribution in schema components_xsd Drilldown into Failure in schema components_xsd Drilldown into Safety in schema components_xsd Drilldown into MeterRecording in schema maintenanceorder_xsd Drilldown into CompletionDateTime in schema fields_xsd Drilldown into EstimatedDuration in schema fields_xsd Drilldown into RemainingDuration in schema fields_xsd Drilldown into ActualDuration in schema fields_xsd Drilldown into OperationID in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into MaintenanceOrderLineType in schema maintenanceorder_xsdXSD Diagram of MaintenanceOrderLine in schema maintenanceorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="MaintenanceOrderLine" type="MaintenanceOrderLineType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
OperationID nsA:OperationID 0 (1)
ActualDuration nsA:ActualDuration 0 (1)
RemainingDuration nsA:RemainingDuration 0 (1)
EstimatedDuration nsA:EstimatedDuration 0 (1)
CompletionDateTime nsA:CompletionDateTime 0 (1)
MeterRecording nsA:MeterRecording 0 unbounded
Safety nsA:Safety 0 (1)
Failure nsA:Failure 0 (1)
Distribution nsA:Distribution 0 unbounded
EstimatedResourceRequirements nsA:EstimatedResourceRequirements 0 (1)
ActualResources nsA:ActualResources 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
