Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: MaintenanceOrderLineType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:LineType
Containing Schema: MaintenanceOrder.xsd
Abstract

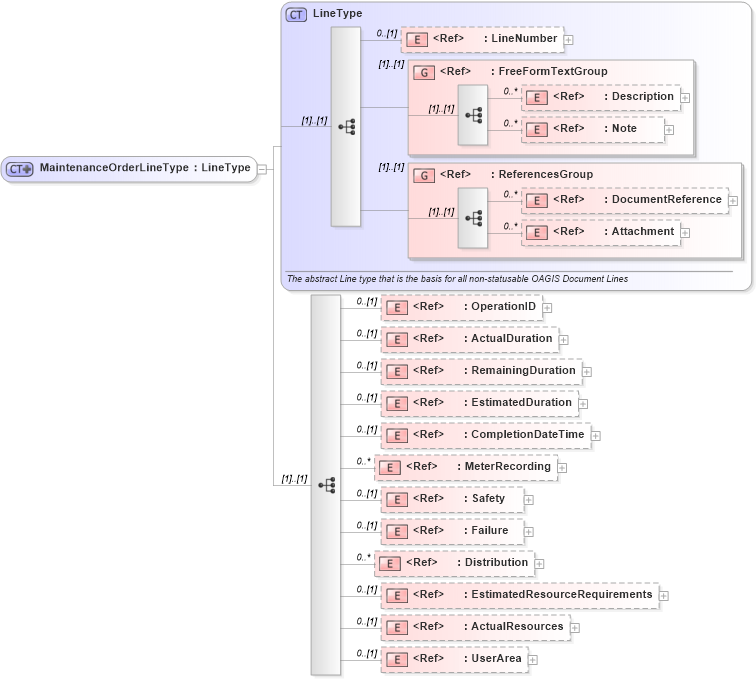

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ActualResources in schema manufacturingcomponents_xsd Drilldown into EstimatedResourceRequirements in schema manufacturingcomponents_xsd Drilldown into Distribution in schema components_xsd Drilldown into Failure in schema components_xsd Drilldown into Safety in schema components_xsd Drilldown into MeterRecording in schema maintenanceorder_xsd Drilldown into CompletionDateTime in schema fields_xsd Drilldown into EstimatedDuration in schema fields_xsd Drilldown into RemainingDuration in schema fields_xsd Drilldown into ActualDuration in schema fields_xsd Drilldown into OperationID in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsdXSD Diagram of MaintenanceOrderLineType in schema maintenanceorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="MaintenanceOrderLineType">
    <xsd:complexContent>
        <xsd:extension base="LineType">
            <xsd:sequence>
                <xsd:element ref="OperationID" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation>This is the identifier of the Maintenance Operation</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ActualDuration" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the total time spent working on the MaintenanceOrder. Is all of the sum of all the occurances of the ActualTimePeriod.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="RemainingDuration" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Time needed to complete the MaintenanceOrder.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="EstimatedDuration" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is an estimate as to how long it will take to complete the MaintenanceOrder.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="CompletionDateTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the timestamp that indicates when the MaintenanceOrder was completed.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="MeterRecording" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Safety" minOccurs="0" />
                <xsd:element ref="Failure" minOccurs="0" />
                <xsd:element ref="Distribution" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="EstimatedResourceRequirements" minOccurs="0" />
                <xsd:element ref="ActualResources" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation>This identifies the actual usage of resources against the requirements estimated for the work order</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
OperationID nsA:OperationID 0 (1)
ActualDuration nsA:ActualDuration 0 (1)
RemainingDuration nsA:RemainingDuration 0 (1)
EstimatedDuration nsA:EstimatedDuration 0 (1)
CompletionDateTime nsA:CompletionDateTime 0 (1)
MeterRecording nsA:MeterRecording 0 unbounded
Safety nsA:Safety 0 (1)
Failure nsA:Failure 0 (1)
Distribution nsA:Distribution 0 unbounded
EstimatedResourceRequirements nsA:EstimatedResourceRequirements 0 (1)
ActualResources nsA:ActualResources 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:MaintenanceOrderLine
