Definition Type: ComplexType
Name: OperationType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:HeaderType
Containing Schema: ManufacturingComponents.xsd
Abstract

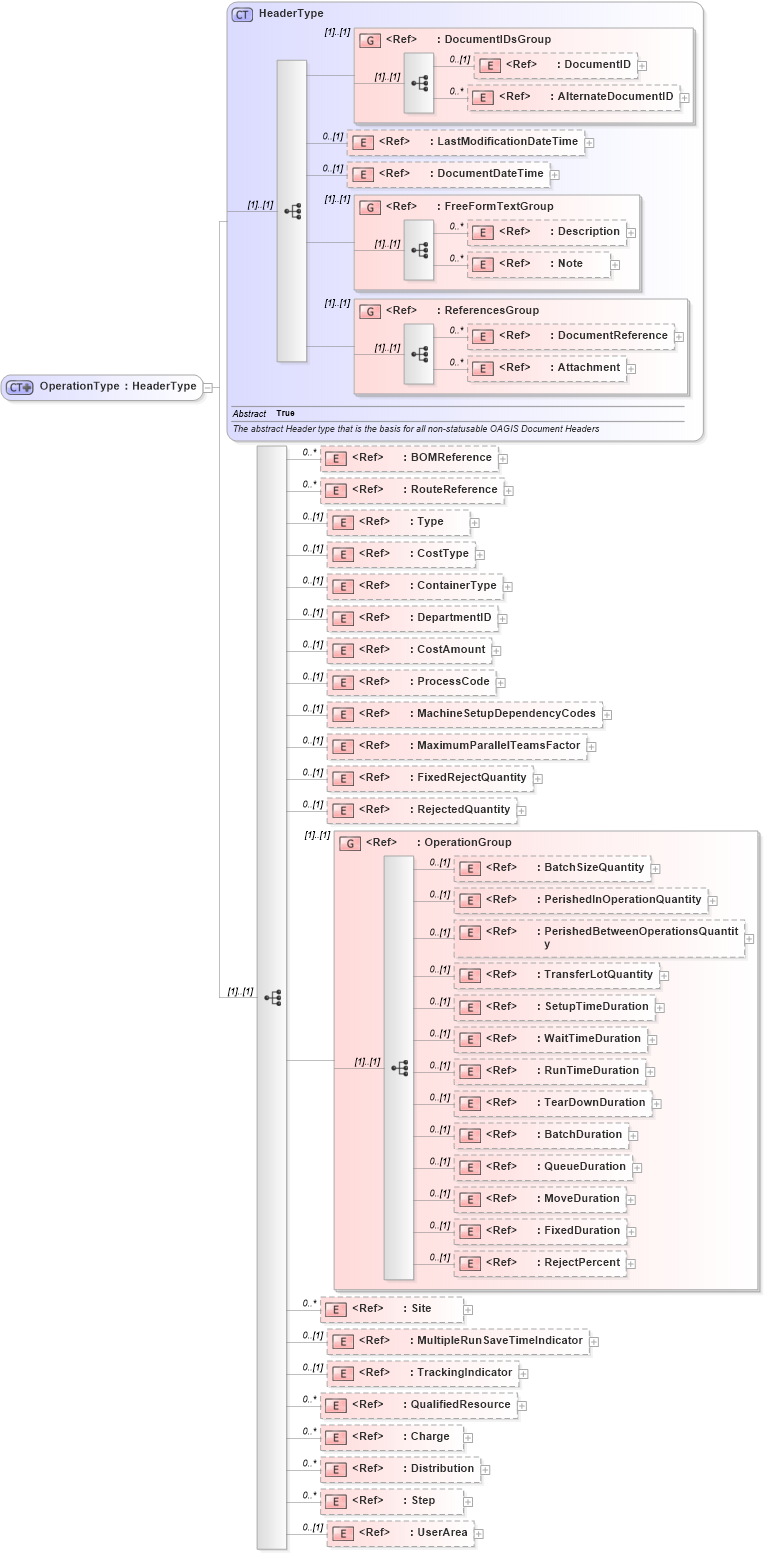

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Step in schema manufacturingcomponents_xsd Drilldown into Distribution in schema components_xsd Drilldown into Charge in schema components_xsd Drilldown into QualifiedResource in schema manufacturingcomponents_xsd Drilldown into TrackingIndicator in schema fields_xsd Drilldown into MultipleRunSaveTimeIndicator in schema fields_xsd Drilldown into Site in schema components_xsd Drilldown into RejectPercent in schema fields_xsd Drilldown into FixedDuration in schema fields_xsd Drilldown into MoveDuration in schema fields_xsd Drilldown into QueueDuration in schema fields_xsd Drilldown into BatchDuration in schema fields_xsd Drilldown into TearDownDuration in schema fields_xsd Drilldown into RunTimeDuration in schema fields_xsd Drilldown into WaitTimeDuration in schema fields_xsd Drilldown into SetupTimeDuration in schema fields_xsd Drilldown into TransferLotQuantity in schema fields_xsd Drilldown into PerishedBetweenOperationsQuantity in schema fields_xsd Drilldown into PerishedInOperationQuantity in schema fields_xsd Drilldown into BatchSizeQuantity in schema fields_xsd Drilldown into OperationGroup in schema manufacturingcomponents_xsd Drilldown into RejectedQuantity in schema fields_xsd Drilldown into FixedRejectQuantity in schema fields_xsd Drilldown into MaximumParallelTeamsFactor in schema fields_xsd Drilldown into MachineSetupDependencyCodes in schema components_xsd Drilldown into ProcessCode in schema fields_xsd Drilldown into CostAmount in schema fields_xsd Drilldown into DepartmentID in schema fields_xsd Drilldown into ContainerType in schema fields_xsd Drilldown into CostType in schema fields_xsd Drilldown into Type in schema fields_xsd Drilldown into RouteReference in schema components_xsd Drilldown into BOMReference in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsdXSD Diagram of OperationType in schema manufacturingcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="OperationType">
    <xsd:complexContent>
        <xsd:extension base="HeaderType">
            <xsd:sequence>
                <xsd:element ref="BOMReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="RouteReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Type" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is used to indicate how the rates are specified. </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="CostType" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the.methodology by which the value of an item is determined.

Values are:
Standard
Moving Average
LIFO - last in first out.
FIFO - first in first out.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ContainerType" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies the type of container used to place the items that result from the operation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="DepartmentID" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the department in which the operation is performed.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="CostAmount" minOccurs="0" />
                <xsd:element ref="ProcessCode" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is a process code used for grouping like operations.
Possible examples are:  Heat Treat, Dyeing</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="MachineSetupDependencyCodes" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates whether the machine can be setup for the operation early or whether setup must happen at a specific time depending upon conditions.

Possible values:
- Early
- NotDelayed
- DelayedByPredicessor
- DelayedByMaterial</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="MaximumParallelTeamsFactor" minOccurs="0" />
                <xsd:element ref="FixedRejectQuantity" minOccurs="0" />
                <xsd:element ref="RejectedQuantity" minOccurs="0" />
                <xsd:group ref="OperationGroup" />
                <xsd:element ref="Site" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies the Location that the work is done.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="MultipleRunSaveTimeIndicator" minOccurs="0" />
                <xsd:element ref="TrackingIndicator" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates whether the operation should be tracked.</xsd:documentation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates whether the operation should be tracked.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="QualifiedResource" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Charge" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Distribution" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Step" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
BOMReference nsA:BOMReference 0 unbounded
RouteReference nsA:RouteReference 0 unbounded
Type nsA:Type 0 (1)
CostType nsA:CostType 0 (1)
ContainerType nsA:ContainerType 0 (1)
DepartmentID nsA:DepartmentID 0 (1)
CostAmount nsA:CostAmount 0 (1)
ProcessCode nsA:ProcessCode 0 (1)
MachineSetupDependencyCodes nsA:MachineSetupDependencyCodes 0 (1)
MaximumParallelTeamsFactor nsA:MaximumParallelTeamsFactor 0 (1)
FixedRejectQuantity nsA:FixedRejectQuantity 0 (1)
RejectedQuantity nsA:RejectedQuantity 0 (1)
BatchSizeQuantity nsA:BatchSizeQuantity 0 (1)
PerishedInOperationQuantity nsA:PerishedInOperationQuantity 0 (1)
PerishedBetweenOperationsQuantity nsA:PerishedBetweenOperationsQuantity 0 (1)
TransferLotQuantity nsA:TransferLotQuantity 0 (1)
SetupTimeDuration nsA:SetupTimeDuration 0 (1)
WaitTimeDuration nsA:WaitTimeDuration 0 (1)
RunTimeDuration nsA:RunTimeDuration 0 (1)
TearDownDuration nsA:TearDownDuration 0 (1)
BatchDuration nsA:BatchDuration 0 (1)
QueueDuration nsA:QueueDuration 0 (1)
MoveDuration nsA:MoveDuration 0 (1)
FixedDuration nsA:FixedDuration 0 (1)
RejectPercent nsA:RejectPercent 0 (1)
Site nsA:Site 0 unbounded
MultipleRunSaveTimeIndicator nsA:MultipleRunSaveTimeIndicator 0 (1)
TrackingIndicator nsA:TrackingIndicator 0 (1)
QualifiedResource nsA:QualifiedResource 0 unbounded
Charge nsA:Charge 0 unbounded
Distribution nsA:Distribution 0 unbounded
Step nsA:Step 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
<xs:group> nsA:OperationGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:MoveFromOperation, nsA:MoveToOperation, nsA:Operation
