Definition Type: Element
Name: pain.002.001.01
Namespace: urn:swift:xsd:$pain.002.001.01
Type: ist:pain.002.001.01
Containing Schema: pain.002.001.01.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

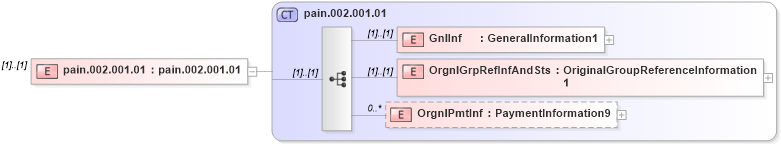

Drilldown into OrgnlPmtInf in schema pain_002_001_01_xsd Drilldown into OrgnlGrpRefInfAndSts in schema pain_002_001_01_xsd Drilldown into GnlInf in schema pain_002_001_01_xsd Drilldown into pain.002.001.01 in schema pain_002_001_01_xsdXSD Diagram of pain.002.001.01 in schema pain_002_001_01_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:element name="pain.002.001.01" type="pain.002.001.01" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GnlInf ist:GnlInf (1) (1)
OrgnlGrpRefInfAndSts ist:OrgnlGrpRefInfAndSts (1) (1)
OrgnlPmtInf ist:OrgnlPmtInf 0 unbounded
Collapse Derivation Tree:
