Definition Type: ComplexType
Name: pain.002.001.01
Namespace: urn:swift:xsd:$pain.002.001.01
Containing Schema: pain.002.001.01.xsd
Abstract
Collapse XSD Schema Diagram:

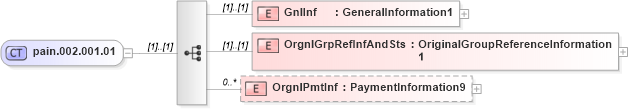

Drilldown into OrgnlPmtInf in schema pain_002_001_01_xsd Drilldown into OrgnlGrpRefInfAndSts in schema pain_002_001_01_xsd Drilldown into GnlInf in schema pain_002_001_01_xsdXSD Diagram of pain.002.001.01 in schema pain_002_001_01_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="pain.002.001.01">
    <xs:sequence>
        <xs:element name="GnlInf" type="GeneralInformation1" />
        <xs:element name="OrgnlGrpRefInfAndSts" type="OriginalGroupReferenceInformation1" />
        <xs:element name="OrgnlPmtInf" type="PaymentInformation9" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GnlInf ist:GnlInf (1) (1)
OrgnlGrpRefInfAndSts ist:OrgnlGrpRefInfAndSts (1) (1)
OrgnlPmtInf ist:OrgnlPmtInf 0 unbounded
Collapse Derivation Tree:
Collapse References:
ist:pain.002.001.01, nsA:PaymentStatusIST
