Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: PayableLineType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:LedgerEntryLineType
Containing Schema: Payable.xsd
Abstract

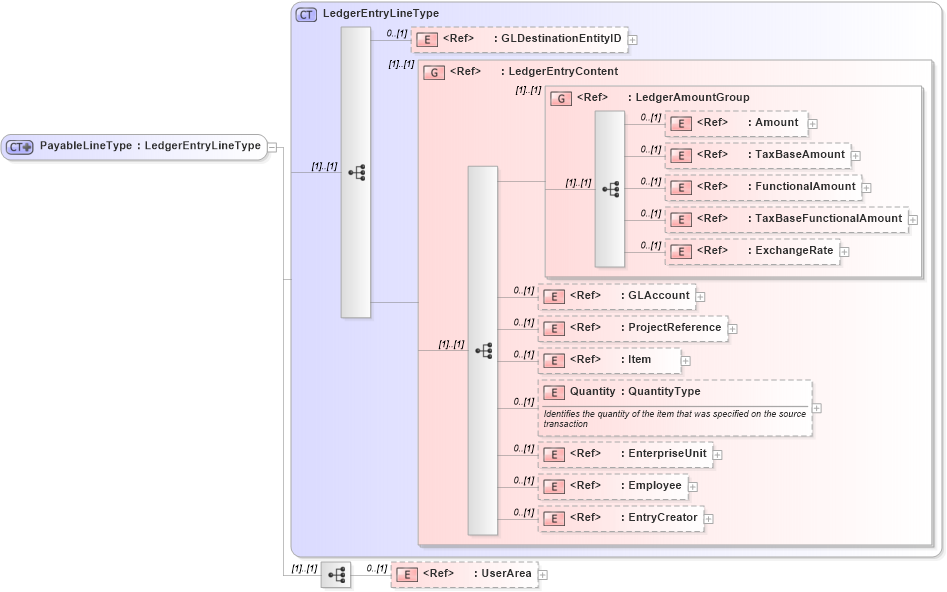

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into EntryCreator in schema components_xsd Drilldown into Employee in schema components_xsd Drilldown into EnterpriseUnit in schema components_xsd Drilldown into Quantity in schema components_xsd1 Drilldown into Item in schema components_xsd Drilldown into ProjectReference in schema components_xsd Drilldown into GLAccount in schema components_xsd Drilldown into ExchangeRate in schema components_xsd Drilldown into TaxBaseFunctionalAmount in schema fields_xsd Drilldown into FunctionalAmount in schema fields_xsd Drilldown into TaxBaseAmount in schema fields_xsd Drilldown into Amount in schema fields_xsd Drilldown into LedgerAmountGroup in schema components_xsd1 Drilldown into LedgerEntryContent in schema components_xsd1 Drilldown into GLDestinationEntityID in schema fields_xsd Drilldown into LedgerEntryLineType in schema components_xsd1XSD Diagram of PayableLineType in schema payable_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="PayableLineType">
    <xsd:complexContent>
        <xsd:extension base="LedgerEntryLineType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GLDestinationEntityID nsA:GLDestinationEntityID 0 (1)
Amount nsA:Amount 0 (1)
TaxBaseAmount nsA:TaxBaseAmount 0 (1)
FunctionalAmount nsA:FunctionalAmount 0 (1)
TaxBaseFunctionalAmount nsA:TaxBaseFunctionalAmount 0 (1)
ExchangeRate nsA:ExchangeRate 0 (1)
GLAccount nsA:GLAccount 0 (1)
ProjectReference nsA:ProjectReference 0 (1)
Item nsA:Item 0 (1)
Quantity nsA:Quantity 0 (1)
EnterpriseUnit nsA:EnterpriseUnit 0 (1)
Employee nsA:Employee 0 (1)
EntryCreator nsA:EntryCreator 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:LedgerEntryContent (1) (1)
<xs:group> nsA:LedgerAmountGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:PayableLine
