Definition Type: ComplexType
Name: PlanningScheduleDetailType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:LineType
Containing Schema: PlanningSchedule.xsd
Abstract

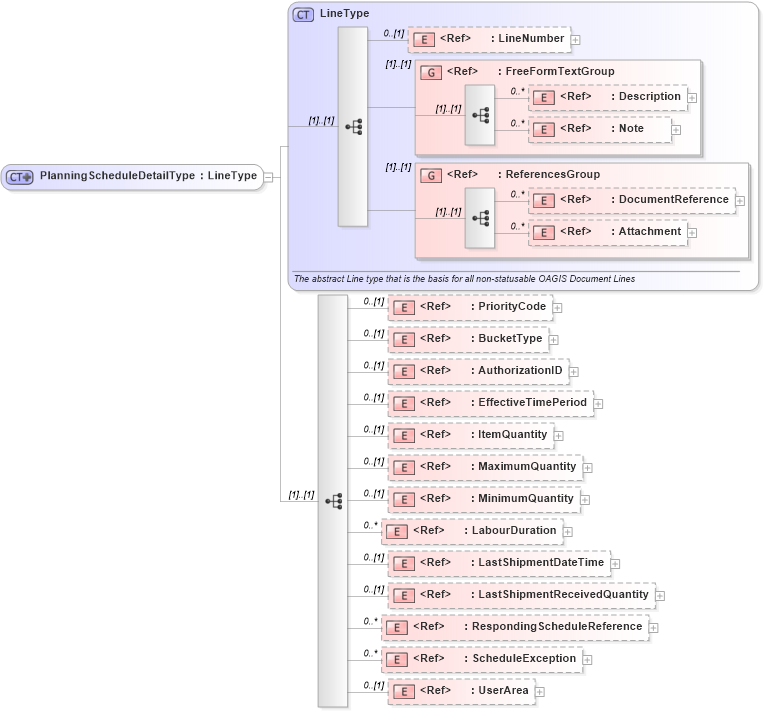

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ScheduleException in schema manufacturingcomponents_xsd Drilldown into RespondingScheduleReference in schema manufacturingcomponents_xsd Drilldown into LastShipmentReceivedQuantity in schema fields_xsd Drilldown into LastShipmentDateTime in schema fields_xsd Drilldown into LabourDuration in schema fields_xsd Drilldown into MinimumQuantity in schema fields_xsd Drilldown into MaximumQuantity in schema fields_xsd Drilldown into ItemQuantity in schema fields_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into AuthorizationID in schema fields_xsd Drilldown into BucketType in schema fields_xsd Drilldown into PriorityCode in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsdXSD Diagram of PlanningScheduleDetailType in schema planningschedule_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="PlanningScheduleDetailType">
    <xsd:complexContent>
        <xsd:extension base="LineType">
            <xsd:sequence>
                <xsd:element ref="PriorityCode" minOccurs="0" />
                <xsd:element ref="BucketType" minOccurs="0" />
                <xsd:element ref="AuthorizationID" minOccurs="0" />
                <xsd:element ref="EffectiveTimePeriod" minOccurs="0" />
                <xsd:element ref="ItemQuantity" minOccurs="0" />
                <xsd:element ref="MaximumQuantity" minOccurs="0" />
                <xsd:element ref="MinimumQuantity" minOccurs="0" />
                <xsd:element ref="LabourDuration" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="LastShipmentDateTime" minOccurs="0" />
                <xsd:element ref="LastShipmentReceivedQuantity" minOccurs="0" />
                <xsd:element ref="RespondingScheduleReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ScheduleException" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
PriorityCode nsA:PriorityCode 0 (1)
BucketType nsA:BucketType 0 (1)
AuthorizationID nsA:AuthorizationID 0 (1)
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
ItemQuantity nsA:ItemQuantity 0 (1)
MaximumQuantity nsA:MaximumQuantity 0 (1)
MinimumQuantity nsA:MinimumQuantity 0 (1)
LabourDuration nsA:LabourDuration 0 unbounded
LastShipmentDateTime nsA:LastShipmentDateTime 0 (1)
LastShipmentReceivedQuantity nsA:LastShipmentReceivedQuantity 0 (1)
RespondingScheduleReference nsA:RespondingScheduleReference 0 unbounded
ScheduleException nsA:ScheduleException 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:PlanningScheduleDetail
