Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: PlanningScheduleLine
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:PlanningScheduleLineType
Containing Schema: PlanningSchedule.xsd
Abstract
Documentation:
Line level information for the schedule.

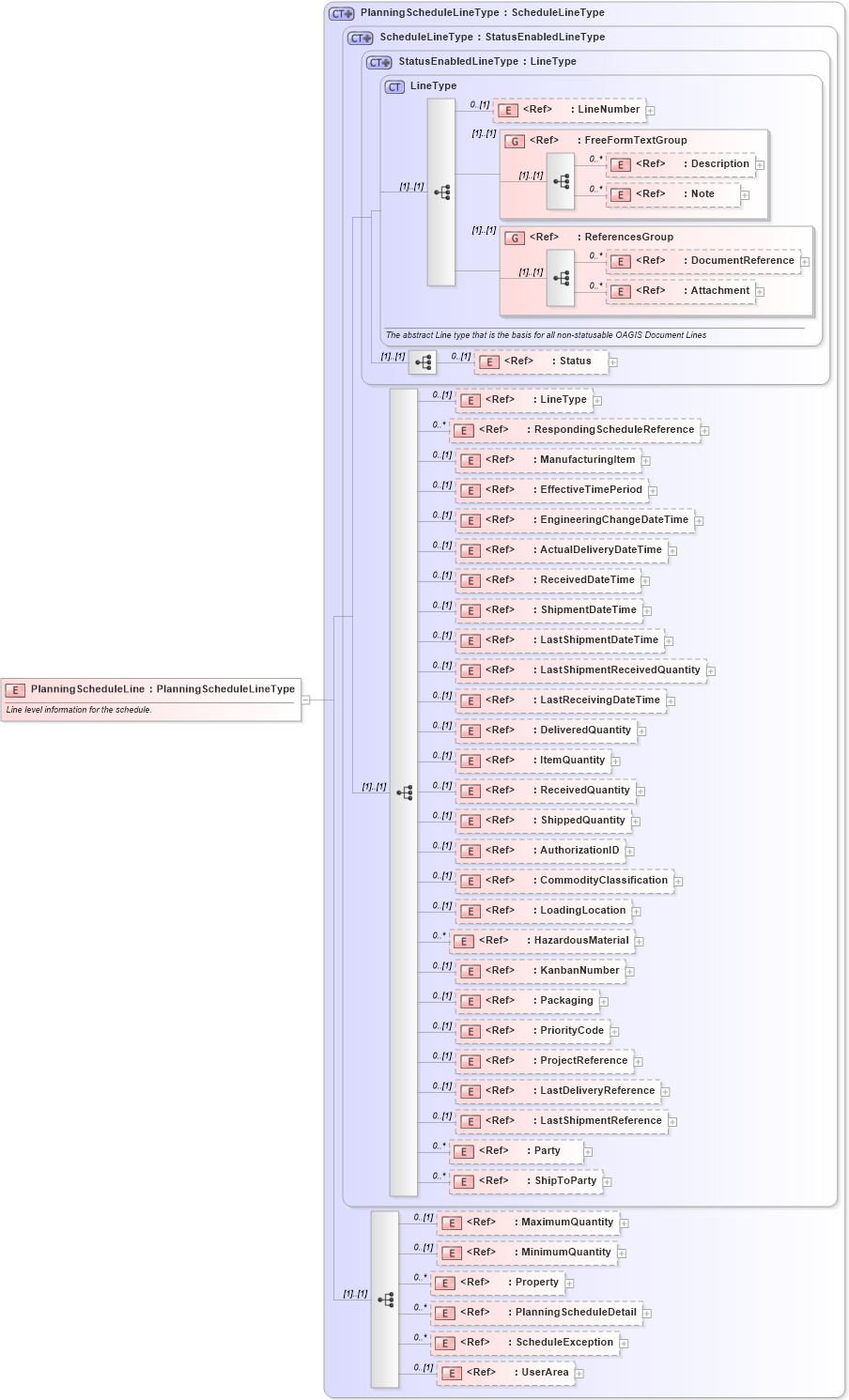

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ScheduleException in schema manufacturingcomponents_xsd Drilldown into PlanningScheduleDetail in schema planningschedule_xsd Drilldown into Property in schema components_xsd Drilldown into MinimumQuantity in schema fields_xsd Drilldown into MaximumQuantity in schema fields_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into Party in schema components_xsd Drilldown into LastShipmentReference in schema components_xsd Drilldown into LastDeliveryReference in schema components_xsd Drilldown into ProjectReference in schema components_xsd Drilldown into PriorityCode in schema fields_xsd Drilldown into Packaging in schema components_xsd Drilldown into KanbanNumber in schema fields_xsd Drilldown into HazardousMaterial in schema components_xsd Drilldown into LoadingLocation in schema components_xsd Drilldown into CommodityClassification in schema components_xsd Drilldown into AuthorizationID in schema fields_xsd Drilldown into ShippedQuantity in schema fields_xsd Drilldown into ReceivedQuantity in schema fields_xsd Drilldown into ItemQuantity in schema fields_xsd Drilldown into DeliveredQuantity in schema fields_xsd Drilldown into LastReceivingDateTime in schema fields_xsd Drilldown into LastShipmentReceivedQuantity in schema fields_xsd Drilldown into LastShipmentDateTime in schema fields_xsd Drilldown into ShipmentDateTime in schema fields_xsd Drilldown into ReceivedDateTime in schema fields_xsd Drilldown into ActualDeliveryDateTime in schema fields_xsd Drilldown into EngineeringChangeDateTime in schema fields_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into ManufacturingItem in schema manufacturingcomponents_xsd Drilldown into RespondingScheduleReference in schema manufacturingcomponents_xsd Drilldown into LineType in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into StatusEnabledLineType in schema components_xsd Drilldown into ScheduleLineType in schema manufacturingcomponents_xsd Drilldown into PlanningScheduleLineType in schema planningschedule_xsdXSD Diagram of PlanningScheduleLine in schema planningschedule_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="PlanningScheduleLine" type="PlanningScheduleLineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Line level information for the schedule.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
LineType nsA:LineType 0 (1)
RespondingScheduleReference nsA:RespondingScheduleReference 0 unbounded
ManufacturingItem nsA:ManufacturingItem 0 (1)
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
EngineeringChangeDateTime nsA:EngineeringChangeDateTime 0 (1)
ActualDeliveryDateTime nsA:ActualDeliveryDateTime 0 (1)
ReceivedDateTime nsA:ReceivedDateTime 0 (1)
ShipmentDateTime nsA:ShipmentDateTime 0 (1)
LastShipmentDateTime nsA:LastShipmentDateTime 0 (1)
LastShipmentReceivedQuantity nsA:LastShipmentReceivedQuantity 0 (1)
LastReceivingDateTime nsA:LastReceivingDateTime 0 (1)
DeliveredQuantity nsA:DeliveredQuantity 0 (1)
ItemQuantity nsA:ItemQuantity 0 (1)
ReceivedQuantity nsA:ReceivedQuantity 0 (1)
ShippedQuantity nsA:ShippedQuantity 0 (1)
AuthorizationID nsA:AuthorizationID 0 (1)
CommodityClassification nsA:CommodityClassification 0 (1)
LoadingLocation nsA:LoadingLocation 0 (1)
HazardousMaterial nsA:HazardousMaterial 0 unbounded
KanbanNumber nsA:KanbanNumber 0 (1)
Packaging nsA:Packaging 0 (1)
PriorityCode nsA:PriorityCode 0 (1)
ProjectReference nsA:ProjectReference 0 (1)
LastDeliveryReference nsA:LastDeliveryReference 0 (1)
LastShipmentReference nsA:LastShipmentReference 0 (1)
Party nsA:Party 0 unbounded
ShipToParty nsA:ShipToParty 0 unbounded
MaximumQuantity nsA:MaximumQuantity 0 (1)
MinimumQuantity nsA:MinimumQuantity 0 (1)
Property nsA:Property 0 unbounded
PlanningScheduleDetail nsA:PlanningScheduleDetail 0 unbounded
ScheduleException nsA:ScheduleException 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
