Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ProductionOrderLine
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProductionOrderLineType
Containing Schema: ProductionOrder.xsd
Abstract
Documentation:
Information used to communicate the individual items on the pre-determined Bill of Material structure.

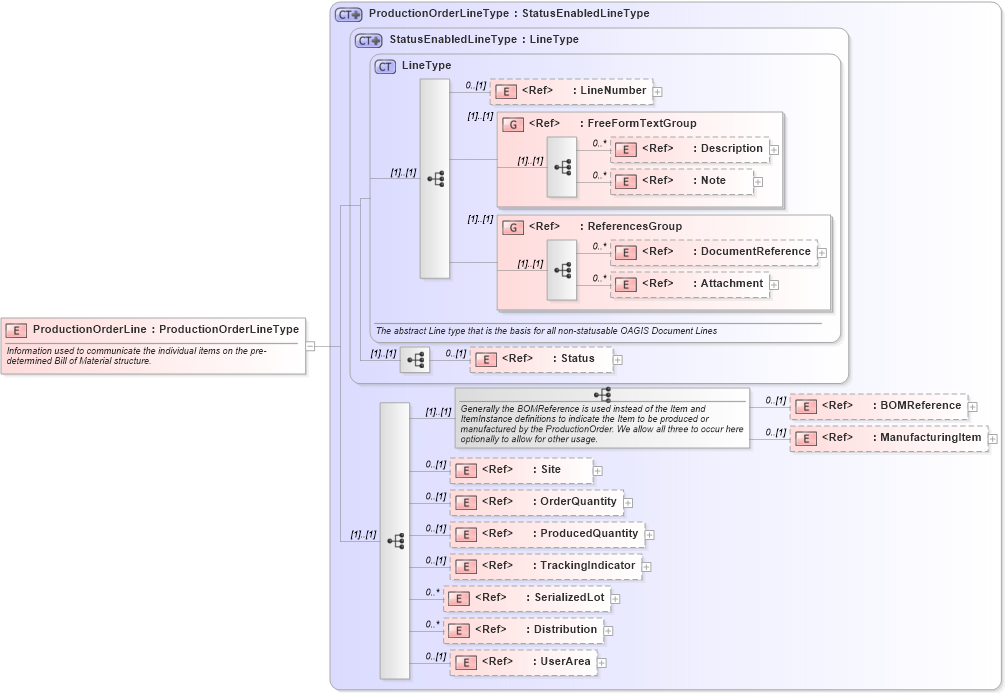

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Distribution in schema components_xsd Drilldown into SerializedLot in schema components_xsd Drilldown into TrackingIndicator in schema fields_xsd Drilldown into ProducedQuantity in schema fields_xsd Drilldown into OrderQuantity in schema fields_xsd Drilldown into Site in schema components_xsd Drilldown into ManufacturingItem in schema manufacturingcomponents_xsd Drilldown into BOMReference in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into StatusEnabledLineType in schema components_xsd Drilldown into ProductionOrderLineType in schema productionorder_xsdXSD Diagram of ProductionOrderLine in schema productionorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ProductionOrderLine" type="ProductionOrderLineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Information used to communicate the individual items on the pre-determined Bill of Material structure.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
BOMReference nsA:BOMReference 0 (1)
ManufacturingItem nsA:ManufacturingItem 0 (1)
Site nsA:Site 0 (1)
OrderQuantity nsA:OrderQuantity 0 (1)
ProducedQuantity nsA:ProducedQuantity 0 (1)
TrackingIndicator nsA:TrackingIndicator 0 (1)
SerializedLot nsA:SerializedLot 0 unbounded
Distribution nsA:Distribution 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
