Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: QuoteSubLine
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:QuoteSubLineType
Containing Schema: Quote.xsd
Abstract
Documentation:
The Component Subline represents any additional information concerning the product on the Line. The Subline can be used to describe a specific configuration of the ordered item.

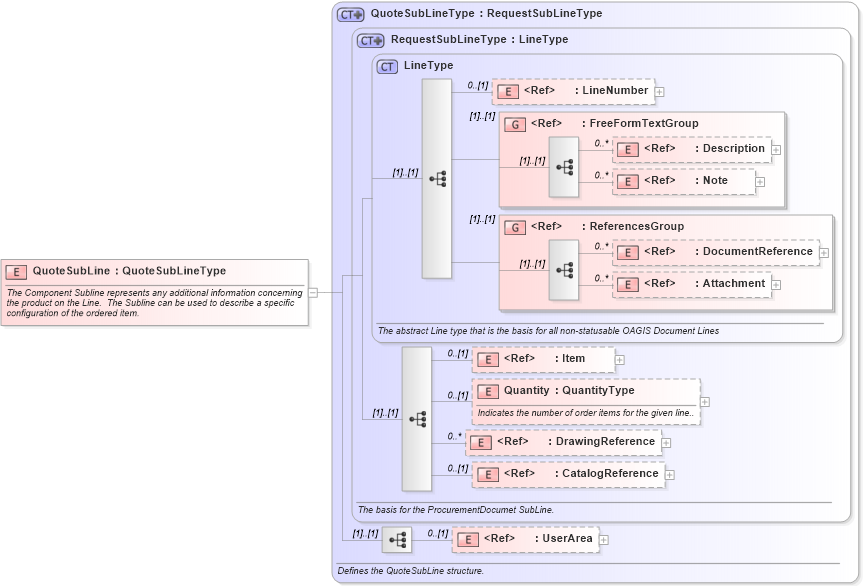

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into CatalogReference in schema components_xsd Drilldown into DrawingReference in schema components_xsd Drilldown into Quantity in schema ordermanagementcomponents_xsd Drilldown into Item in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into RequestSubLineType in schema ordermanagementcomponents_xsd Drilldown into QuoteSubLineType in schema quote_xsdXSD Diagram of QuoteSubLine in schema quote_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="QuoteSubLine" type="QuoteSubLineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The Component Subline represents any additional information concerning the product on the Line.  The Subline can be used to describe a specific configuration of the ordered item.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Item nsA:Item 0 (1)
Quantity nsA:Quantity 0 (1)
DrawingReference nsA:DrawingReference 0 unbounded
CatalogReference nsA:CatalogReference 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
