Definition Type: ComplexType
Name: QuoteSubLineType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:RequestSubLineType
Containing Schema: Quote.xsd
Abstract
Documentation:
Defines the QuoteSubLine structure.

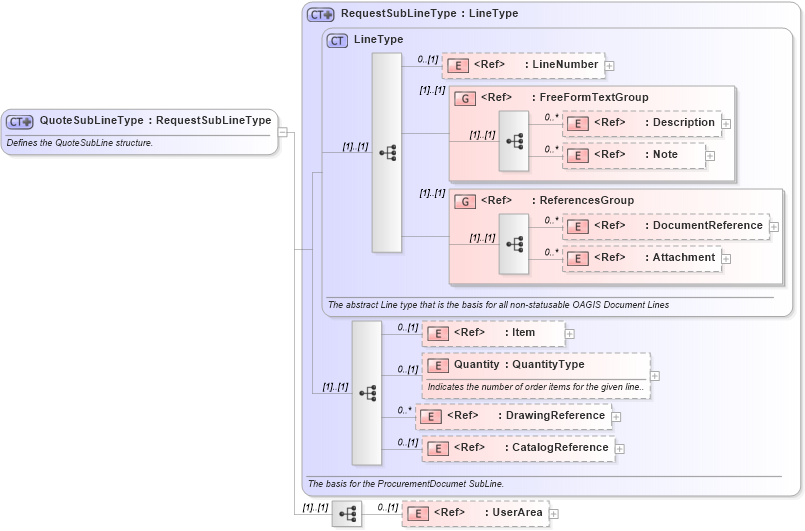

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into CatalogReference in schema components_xsd Drilldown into DrawingReference in schema components_xsd Drilldown into Quantity in schema ordermanagementcomponents_xsd Drilldown into Item in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into RequestSubLineType in schema ordermanagementcomponents_xsdXSD Diagram of QuoteSubLineType in schema quote_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="QuoteSubLineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Defines the QuoteSubLine structure.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="RequestSubLineType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Item nsA:Item 0 (1)
Quantity nsA:Quantity 0 (1)
DrawingReference nsA:DrawingReference 0 unbounded
CatalogReference nsA:CatalogReference 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:QuoteSubLine
