Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: ReceiveDeliveryUnitItemType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShipItemBaseType
Containing Schema: ReceiveDelivery.xsd
Abstract
Documentation:
Provides information about a specific quantity of goods inventory contained within a shipping unit. RECEIPTITM is used to provide a detailed breakdown of RECEIPTLN inventory for inventory discrepancies or compliance charges for a particular shipping unit

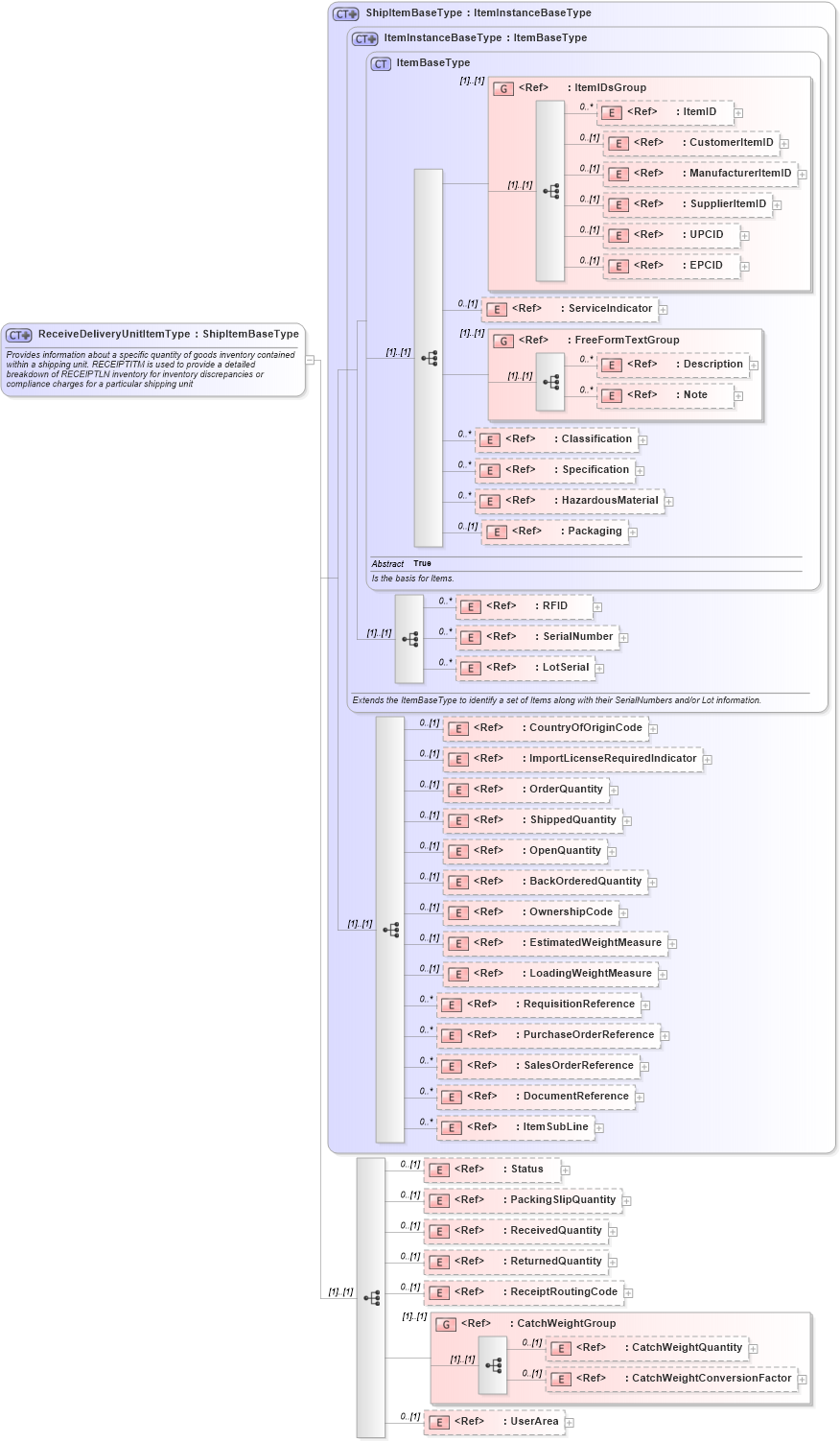

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into CatchWeightConversionFactor in schema fields_xsd Drilldown into CatchWeightQuantity in schema fields_xsd Drilldown into CatchWeightGroup in schema logisticscomponents_xsd Drilldown into ReceiptRoutingCode in schema fields_xsd Drilldown into ReturnedQuantity in schema fields_xsd Drilldown into ReceivedQuantity in schema fields_xsd Drilldown into PackingSlipQuantity in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into ItemSubLine in schema logisticscomponents_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into SalesOrderReference in schema components_xsd Drilldown into PurchaseOrderReference in schema components_xsd Drilldown into RequisitionReference in schema components_xsd Drilldown into LoadingWeightMeasure in schema fields_xsd Drilldown into EstimatedWeightMeasure in schema fields_xsd Drilldown into OwnershipCode in schema fields_xsd Drilldown into BackOrderedQuantity in schema fields_xsd Drilldown into OpenQuantity in schema fields_xsd Drilldown into ShippedQuantity in schema fields_xsd Drilldown into OrderQuantity in schema fields_xsd Drilldown into ImportLicenseRequiredIndicator in schema fields_xsd Drilldown into CountryOfOriginCode in schema fields_xsd Drilldown into LotSerial in schema components_xsd Drilldown into SerialNumber in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into Packaging in schema components_xsd Drilldown into HazardousMaterial in schema components_xsd Drilldown into Specification in schema components_xsd Drilldown into Classification in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ServiceIndicator in schema fields_xsd Drilldown into EPCID in schema fields_xsd Drilldown into UPCID in schema fields_xsd Drilldown into SupplierItemID in schema components_xsd Drilldown into ManufacturerItemID in schema components_xsd Drilldown into CustomerItemID in schema components_xsd Drilldown into ItemID in schema components_xsd Drilldown into ItemIDsGroup in schema components_xsd Drilldown into ItemBaseType in schema components_xsd Drilldown into ItemInstanceBaseType in schema components_xsd Drilldown into ShipItemBaseType in schema logisticscomponents_xsdXSD Diagram of ReceiveDeliveryUnitItemType in schema receivedelivery_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ReceiveDeliveryUnitItemType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Provides information about a specific quantity of goods inventory contained within a shipping unit. RECEIPTITM is used to provide a detailed breakdown of RECEIPTLN inventory for inventory discrepancies or compliance charges for a particular shipping unit</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ShipItemBaseType">
            <xsd:sequence>
                <xsd:element ref="Status" minOccurs="0" />
                <xsd:element ref="PackingSlipQuantity" minOccurs="0" />
                <xsd:element ref="ReceivedQuantity" minOccurs="0" />
                <xsd:element ref="ReturnedQuantity" minOccurs="0" />
                <xsd:element ref="ReceiptRoutingCode" minOccurs="0" />
                <xsd:group ref="CatchWeightGroup" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemID nsA:ItemID 0 unbounded
CustomerItemID nsA:CustomerItemID 0 (1)
ManufacturerItemID nsA:ManufacturerItemID 0 (1)
SupplierItemID nsA:SupplierItemID 0 (1)
UPCID nsA:UPCID 0 (1)
EPCID nsA:EPCID 0 (1)
ServiceIndicator nsA:ServiceIndicator 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Classification nsA:Classification 0 unbounded
Specification nsA:Specification 0 unbounded
HazardousMaterial nsA:HazardousMaterial 0 unbounded
Packaging nsA:Packaging 0 (1)
RFID nsA:RFID 0 unbounded
SerialNumber nsA:SerialNumber 0 unbounded
LotSerial nsA:LotSerial 0 unbounded
CountryOfOriginCode nsA:CountryOfOriginCode 0 (1)
ImportLicenseRequiredIndicator nsA:ImportLicenseRequiredIndicator 0 (1)
OrderQuantity nsA:OrderQuantity 0 (1)
ShippedQuantity nsA:ShippedQuantity 0 (1)
OpenQuantity nsA:OpenQuantity 0 (1)
BackOrderedQuantity nsA:BackOrderedQuantity 0 (1)
OwnershipCode nsA:OwnershipCode 0 (1)
EstimatedWeightMeasure nsA:EstimatedWeightMeasure 0 (1)
LoadingWeightMeasure nsA:LoadingWeightMeasure 0 (1)
RequisitionReference nsA:RequisitionReference 0 unbounded
PurchaseOrderReference nsA:PurchaseOrderReference 0 unbounded
SalesOrderReference nsA:SalesOrderReference 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
ItemSubLine nsA:ItemSubLine 0 unbounded
Status nsA:Status 0 (1)
PackingSlipQuantity nsA:PackingSlipQuantity 0 (1)
ReceivedQuantity nsA:ReceivedQuantity 0 (1)
ReturnedQuantity nsA:ReturnedQuantity 0 (1)
ReceiptRoutingCode nsA:ReceiptRoutingCode 0 (1)
CatchWeightQuantity nsA:CatchWeightQuantity 0 (1)
CatchWeightConversionFactor nsA:CatchWeightConversionFactor 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:ItemIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:CatchWeightGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:ReceiveDeliveryUnitItem
