Definition Type: ComplexType
Name: ShipItemBaseType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ItemInstanceBaseType
Containing Schema: LogisticsComponents.xsd
Abstract

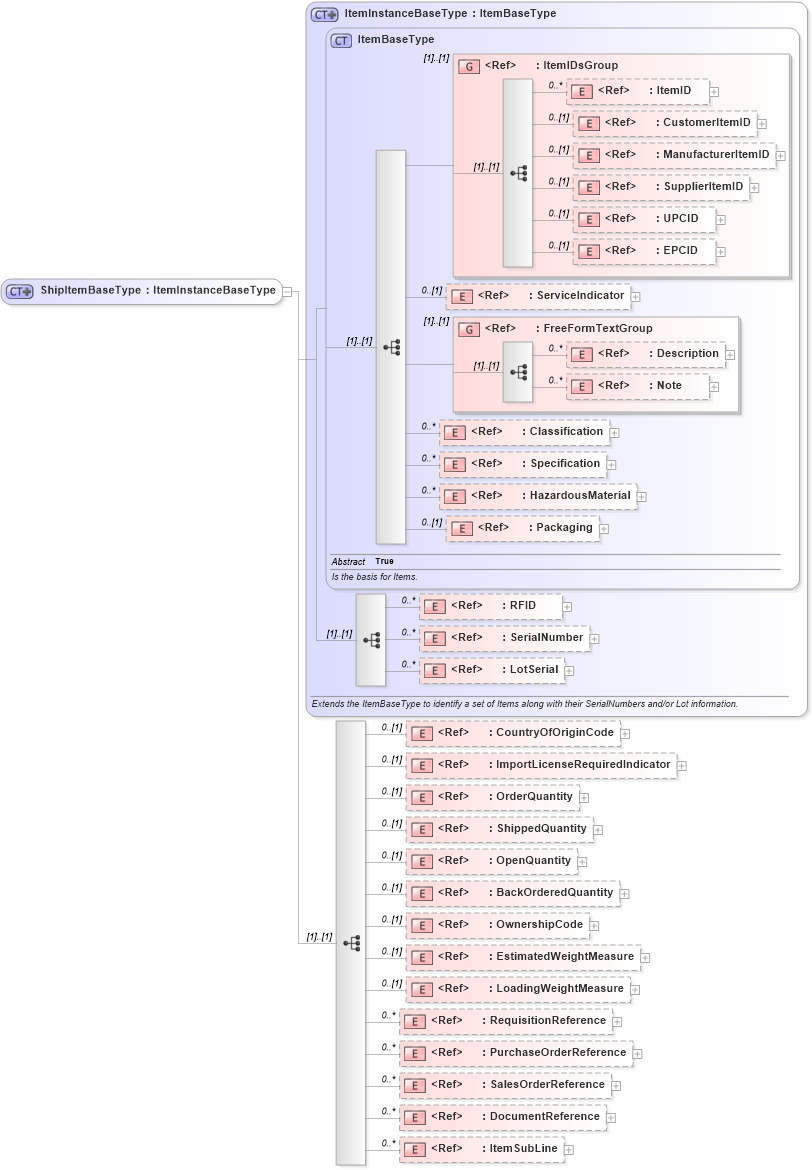

Collapse XSD Schema Diagram:
Drilldown into ItemSubLine in schema logisticscomponents_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into SalesOrderReference in schema components_xsd Drilldown into PurchaseOrderReference in schema components_xsd Drilldown into RequisitionReference in schema components_xsd Drilldown into LoadingWeightMeasure in schema fields_xsd Drilldown into EstimatedWeightMeasure in schema fields_xsd Drilldown into OwnershipCode in schema fields_xsd Drilldown into BackOrderedQuantity in schema fields_xsd Drilldown into OpenQuantity in schema fields_xsd Drilldown into ShippedQuantity in schema fields_xsd Drilldown into OrderQuantity in schema fields_xsd Drilldown into ImportLicenseRequiredIndicator in schema fields_xsd Drilldown into CountryOfOriginCode in schema fields_xsd Drilldown into LotSerial in schema components_xsd Drilldown into SerialNumber in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into Packaging in schema components_xsd Drilldown into HazardousMaterial in schema components_xsd Drilldown into Specification in schema components_xsd Drilldown into Classification in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ServiceIndicator in schema fields_xsd Drilldown into EPCID in schema fields_xsd Drilldown into UPCID in schema fields_xsd Drilldown into SupplierItemID in schema components_xsd Drilldown into ManufacturerItemID in schema components_xsd Drilldown into CustomerItemID in schema components_xsd Drilldown into ItemID in schema components_xsd Drilldown into ItemIDsGroup in schema components_xsd Drilldown into ItemBaseType in schema components_xsd Drilldown into ItemInstanceBaseType in schema components_xsdXSD Diagram of ShipItemBaseType in schema logisticscomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ShipItemBaseType">
    <xsd:complexContent>
        <xsd:extension base="ItemInstanceBaseType">
            <xsd:sequence>
                <xsd:element ref="CountryOfOriginCode" minOccurs="0" />
                <xsd:element ref="ImportLicenseRequiredIndicator" minOccurs="0" />
                <xsd:element ref="OrderQuantity" minOccurs="0" />
                <xsd:element ref="ShippedQuantity" minOccurs="0" />
                <xsd:element ref="OpenQuantity" minOccurs="0" />
                <xsd:element ref="BackOrderedQuantity" minOccurs="0" />
                <xsd:element ref="OwnershipCode" minOccurs="0" />
                <xsd:element ref="EstimatedWeightMeasure" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">The estimated weight of an item or container.  An estimate is provided as a processing alternative when the actual weight of an item is not known or cannot be calculated exactly.</xsd:documentation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">The estimated weight of an item or container.  An estimate is provided as a processing alternative when the actual weight of an item is not known or cannot be calculated exactly.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="LoadingWeightMeasure" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">This is the net weight at loading time of the container in which the materials are being shipped.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="RequisitionReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="PurchaseOrderReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="SalesOrderReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="DocumentReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ItemSubLine" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemID nsA:ItemID 0 unbounded
CustomerItemID nsA:CustomerItemID 0 (1)
ManufacturerItemID nsA:ManufacturerItemID 0 (1)
SupplierItemID nsA:SupplierItemID 0 (1)
UPCID nsA:UPCID 0 (1)
EPCID nsA:EPCID 0 (1)
ServiceIndicator nsA:ServiceIndicator 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Classification nsA:Classification 0 unbounded
Specification nsA:Specification 0 unbounded
HazardousMaterial nsA:HazardousMaterial 0 unbounded
Packaging nsA:Packaging 0 (1)
RFID nsA:RFID 0 unbounded
SerialNumber nsA:SerialNumber 0 unbounded
LotSerial nsA:LotSerial 0 unbounded
CountryOfOriginCode nsA:CountryOfOriginCode 0 (1)
ImportLicenseRequiredIndicator nsA:ImportLicenseRequiredIndicator 0 (1)
OrderQuantity nsA:OrderQuantity 0 (1)
ShippedQuantity nsA:ShippedQuantity 0 (1)
OpenQuantity nsA:OpenQuantity 0 (1)
BackOrderedQuantity nsA:BackOrderedQuantity 0 (1)
OwnershipCode nsA:OwnershipCode 0 (1)
EstimatedWeightMeasure nsA:EstimatedWeightMeasure 0 (1)
LoadingWeightMeasure nsA:LoadingWeightMeasure 0 (1)
RequisitionReference nsA:RequisitionReference 0 unbounded
PurchaseOrderReference nsA:PurchaseOrderReference 0 unbounded
SalesOrderReference nsA:SalesOrderReference 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
ItemSubLine nsA:ItemSubLine 0 unbounded
<xs:group> nsA:ItemIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:ReceiveDeliveryItemType, nsA:ReceiveDeliveryUnitItemType, nsA:ShipmentItemTypensA:ShipmentUnitItemType,
