Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: RemittanceInformation
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:RemittanceInformationType
Containing Schema: Components.xsd
Abstract
Documentation:
Information supplied to enable the matching of an entry with the items that the payment is intended to settle, eg, commercial invoices in an Accounts Receivable system.

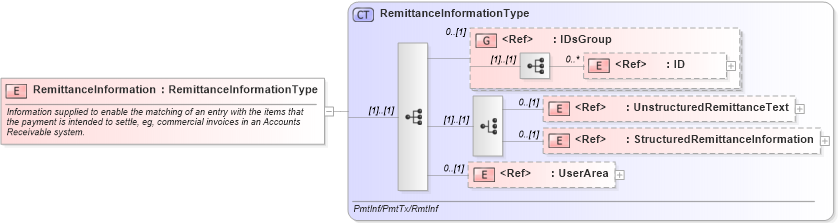

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into StructuredRemittanceInformation in schema components_xsd1 Drilldown into UnstructuredRemittanceText in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into IDsGroup in schema components_xsd Drilldown into RemittanceInformationType in schema components_xsd1XSD Diagram of RemittanceInformation in schema components_xsd1 (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="RemittanceInformation" type="RemittanceInformationType">
    <xsd:annotation>
        <xsd:documentation>Information supplied to enable the matching of an entry with the items that the payment is intended to settle, eg, commercial invoices in an Accounts Receivable system.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
UnstructuredRemittanceText nsA:UnstructuredRemittanceText 0 (1)
StructuredRemittanceInformation nsA:StructuredRemittanceInformation 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:IDsGroup 0 (1)
Collapse Derivation Tree:
