Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: RemittanceInformationType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Documentation:
PmtInf/PmtTx/RmtInf

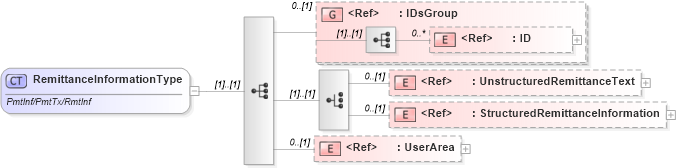

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into StructuredRemittanceInformation in schema components_xsd1 Drilldown into UnstructuredRemittanceText in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into IDsGroup in schema components_xsdXSD Diagram of RemittanceInformationType in schema components_xsd1 (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="RemittanceInformationType">
    <xsd:annotation>
        <xsd:documentation>PmtInf/PmtTx/RmtInf</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="IDsGroup" minOccurs="0" />
        <xsd:choice>
            <xsd:element ref="UnstructuredRemittanceText" minOccurs="0" />
            <xsd:element ref="StructuredRemittanceInformation" minOccurs="0" />
        </xsd:choice>
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
UnstructuredRemittanceText nsA:UnstructuredRemittanceText 0 (1)
StructuredRemittanceInformation nsA:StructuredRemittanceInformation 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:IDsGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:RemittanceInformation
